Nominal Resistance Of The Fuel Level Sensor

WARNING: This page is about a different variant/trim than selected.
  1. Remove the fuel pump module (Refer to FUEL TANK <2.0 L engine, 2.4 L engine> or FUEL TANK <RALLIART>).
  2. When float of the fuel level sensor is in stopper positions F and E, ensure that resistance between the fuel level sensor terminal and ground terminal is within the standard value.

    <FWD> Standard value:

    STANDARD VALUE CHART

    Float position Gauge resistance value (ohms)
    Stopper position "F" 13.0 ± 1.0
    Stopper position "E" 120.0 ± 1.0

    <AWD> Standard value:

    STANDARD VALUE CHART

    Float position Gauge resistance value (ohms)
    Main Sub
    Stopper position "F" 6. 5 ± 1.0 6. 5 ± 1.0
    Stopper position "E" 41.9 ± 1.0 78.1 ± 1.0
  3. When the float is moved slowly between stopper positions "F" and "E", ensure that the resistance is smoothly changing.

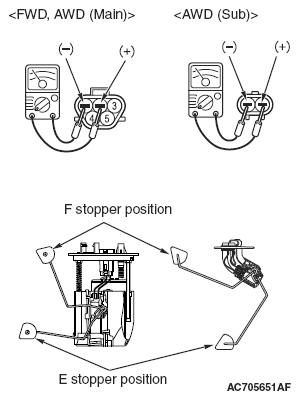

    Fig 1: Checking Fuel Level Sensor
    G06669450Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
