System Diagram: (Turbo)

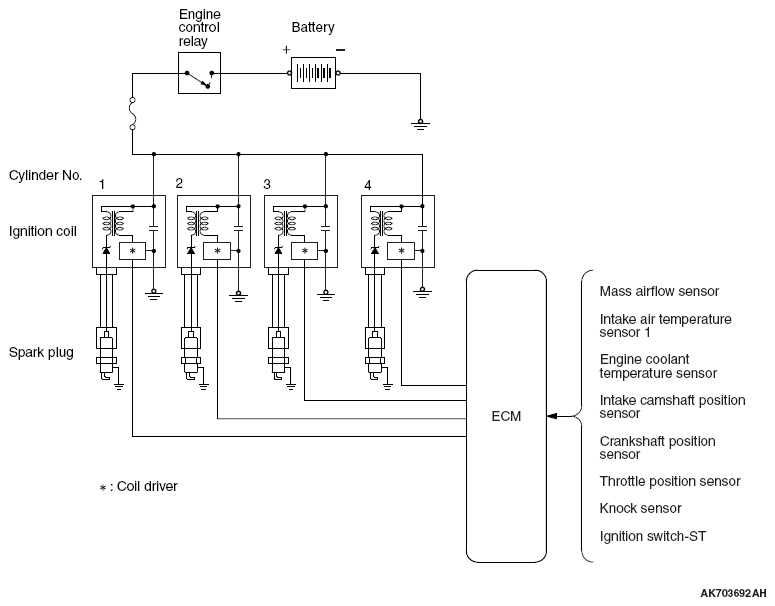

Fig 1: Ignition System Circuit Diagram (Turbo)

G06671937

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
