General Information: Function

WARNING: This page is about a different variant/trim than selected.

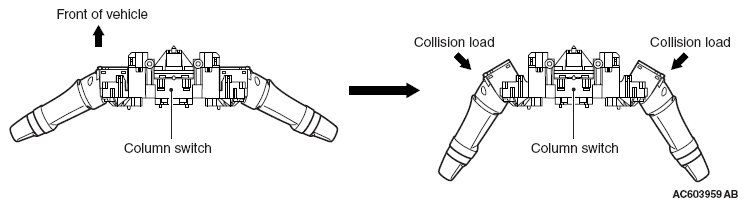

Fig 1: Identifying Column Switch
G06474371Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

If the column switch is moved to the front of the vehicle and hit on the instrument panel or meter bezel by the frontal collision of vehicle, the steering wheel is moved to the front of the vehicle because the right and left levers fall down, ensuring the driver's safety. In addition, the column switch secures the rigidity that the levers do not fall down by the normal operation, however, it cannot be reused after the deformation.
