Home >> Mitsubishi >> 2010 >> Galant ES >> Repair and Diagnosis >> Engine Mechanical >> Engine Intake System & Exhaust System >> Intake Manifold >> Removal And Installation <3.8L Engine> >> Notes

Removal And Installation <3.8L Engine>: Notes

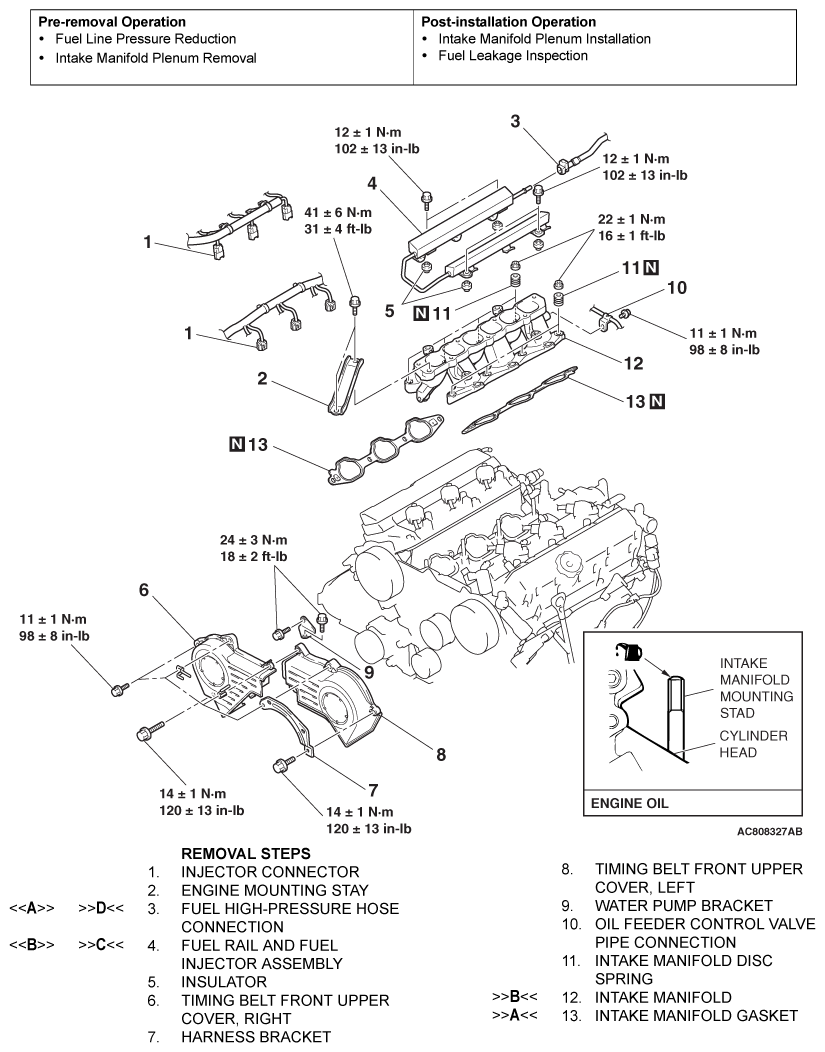

Fig 1: Exploded View Of Intake Manifold (3.8L Engine) With Torque Specifications
G06717534Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
