>>B<< Key Interlock Cable Installation

CAUTION: Leave the ignition switch in the LOCK (OFF) position until the key interlock cable installation is completed.

Fig 1: Identifying Transaxle Control Cable

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Move the selector lever to the P position and turn the ignition switch to the LOCK (OFF) position.
Install the tip of the key interlock cable to the lock cam of the selector lever assembly, taking care not to twist the inner cable.
Install the adjuster case with its lock guide pulled up (unlocked).
Securely push down the lock guide to lock it.

NOTE: The lock position of the key interlock cable is automatically adjusted by a spring.

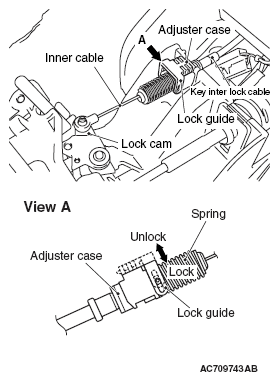

Fig 2: Installing Adjuster Case

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
