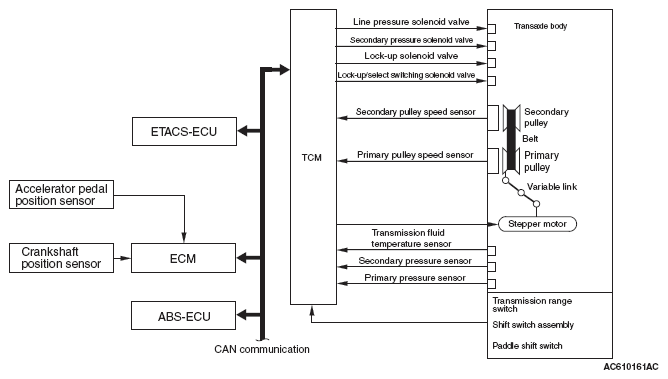

Home >> Mitsubishi >> 2009 >> Outlander ES, AWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> CVT -- On-Vehicle Service >> General Information >> Electronically-Controlled System >> System Construction Diagram
