Direct Control (Torque Converter Clutch Control)

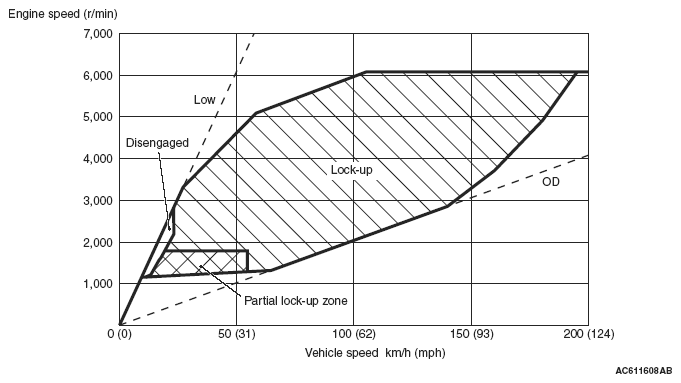

Fig 1: Ratio Pattern Graph For Direct Control (Torque Converter Clutch Control)
G05375733Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

By carefully controlling the direct operating pressure depending on the driving conditions, the shock-free direct operation from low speed has been achieved.
