Mitsubishi
>>
2009
>>
Outlander ES, AWD
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Active Skid Control System (ASC)
>>
Diagnosis
>>
Symptom Procedures
>>
Inspection Procedure 12: ASC-Ecu Power Supply Circuit System
>>
Notes
Inspection Procedure 12: ASC-Ecu Power Supply Circuit System: Notes

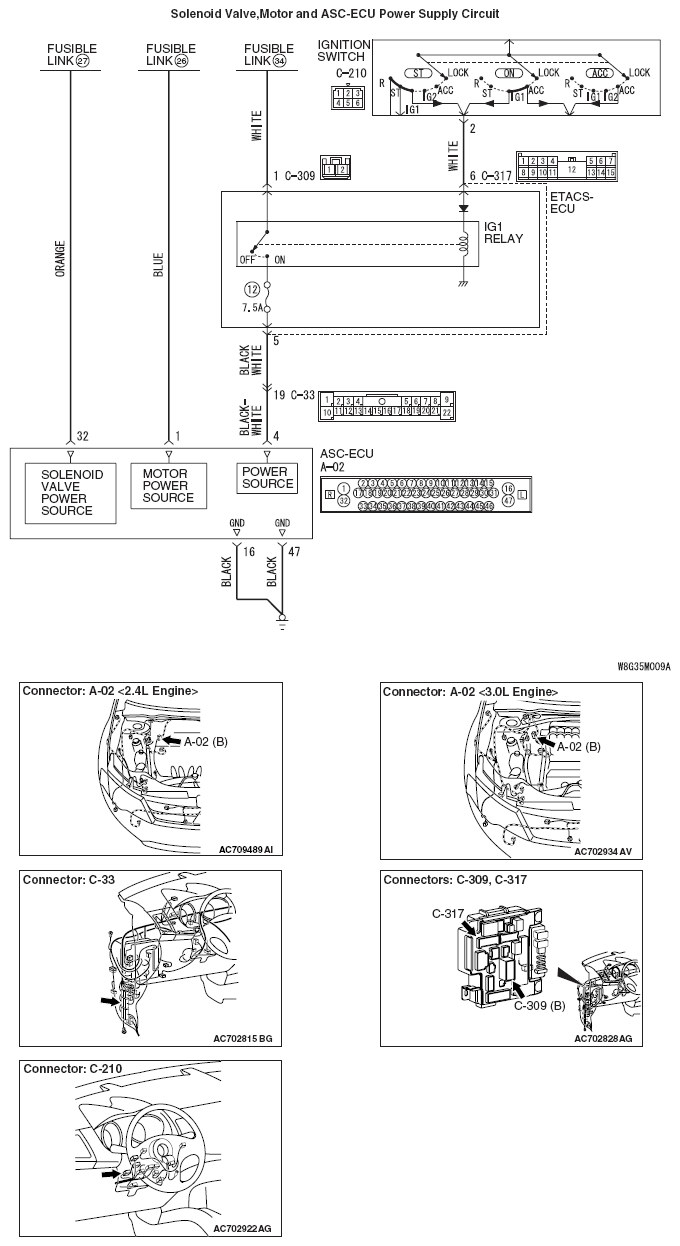

Fig 1: Solenoid Valve, Motor And ASC-ECU Power Supply Circuit Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
