Home >> Mitsubishi >> 2009 >> Outlander ES, AWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Body >> Liftgate >> Liftgate Handle And Latch >> Removal And Installation < Liftgate Lower> >> Notes

Removal And Installation < Liftgate Lower>: Notes

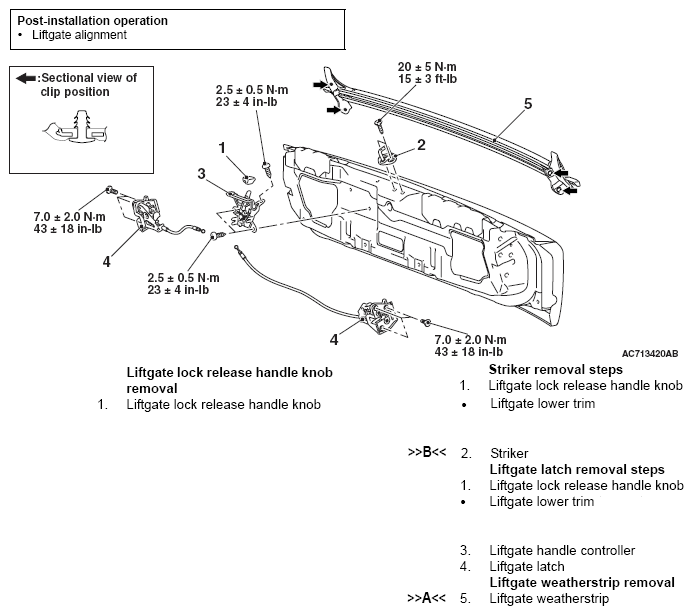

Fig 1: Liftgate Lower Replacement Components With Torque Specifications

G05433028

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
