DTC 15: Cruise Control Switch System (2.0L ENGINE Turbo)
>>
Notes
DTC 15: Cruise Control Switch System (2.0L ENGINE Turbo): Notes

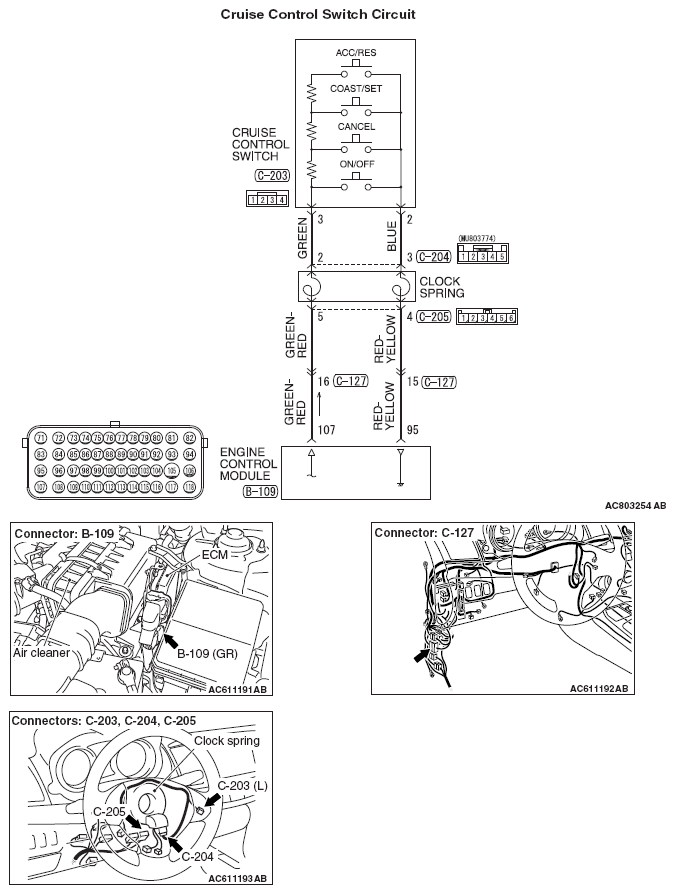

Fig 1: Cruise Control Switch Circuit Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
