Inspection Procedure 4: On The Audio Screen, "E" Cannot Proceed To Next Screen: Notes

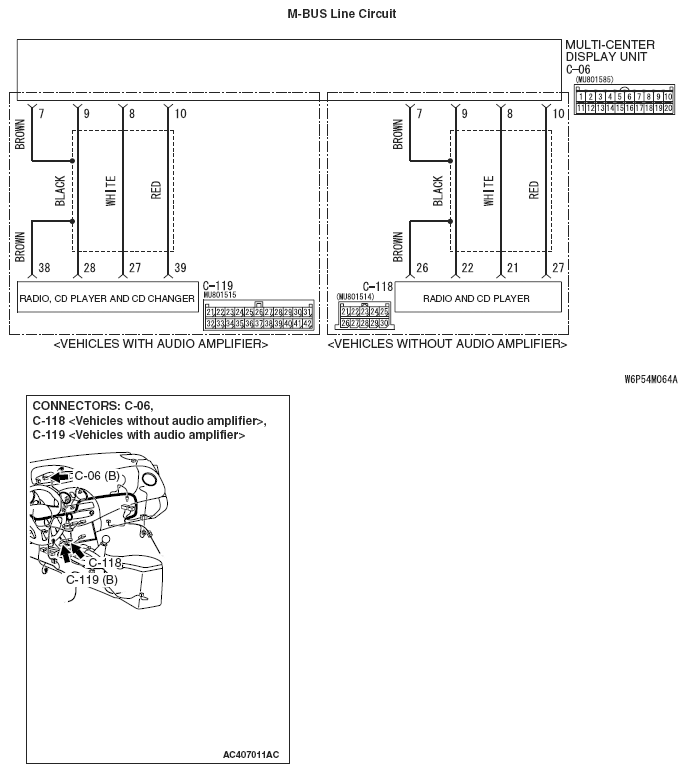

Fig 1: M-BUS Line Circuit Diagram

G05106544

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
