Inspection Procedure 1: The Multi-Center Display Does Not Show Any Information: Notes

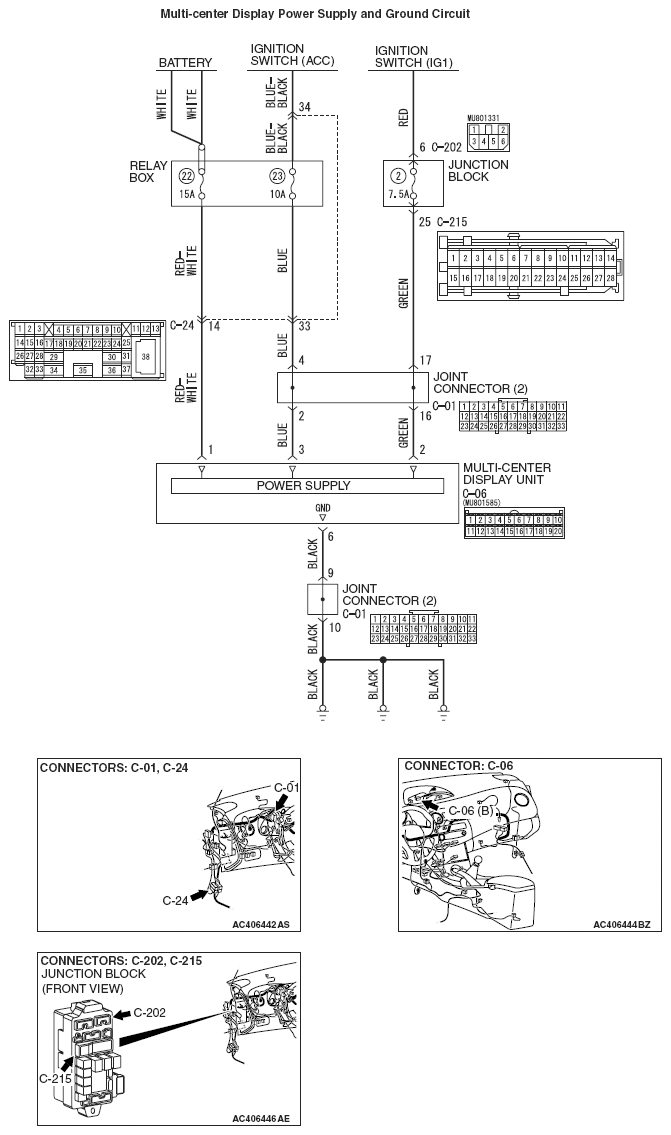

Fig 1: Multi-Center Display Power Supply And Ground Circuit Diagram

G05106511

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
