Inspection Procedure 7: When The TCL Switch Is Pushed On, TCL System Is Not Cancelled: Notes

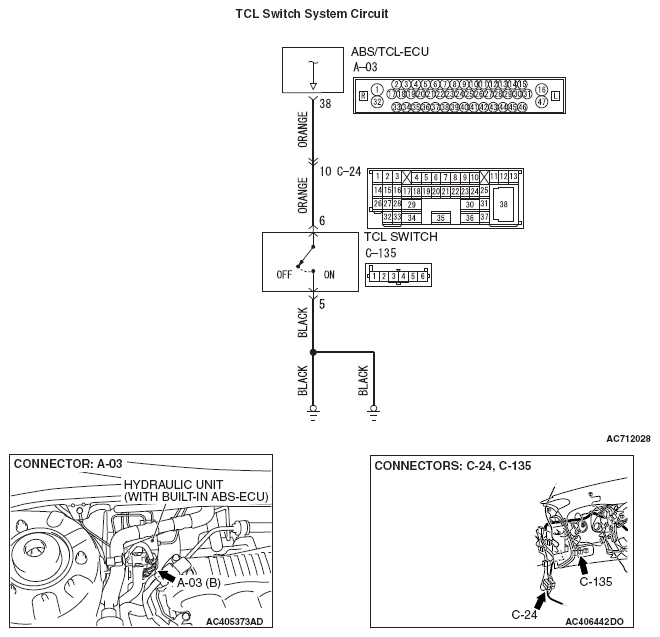

Fig 1: TCL Switch System - Circuit Diagram

G05892258

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
