Inspection Procedure 2: Abs/TCL-Ecu Power Supply Circuit System: Notes

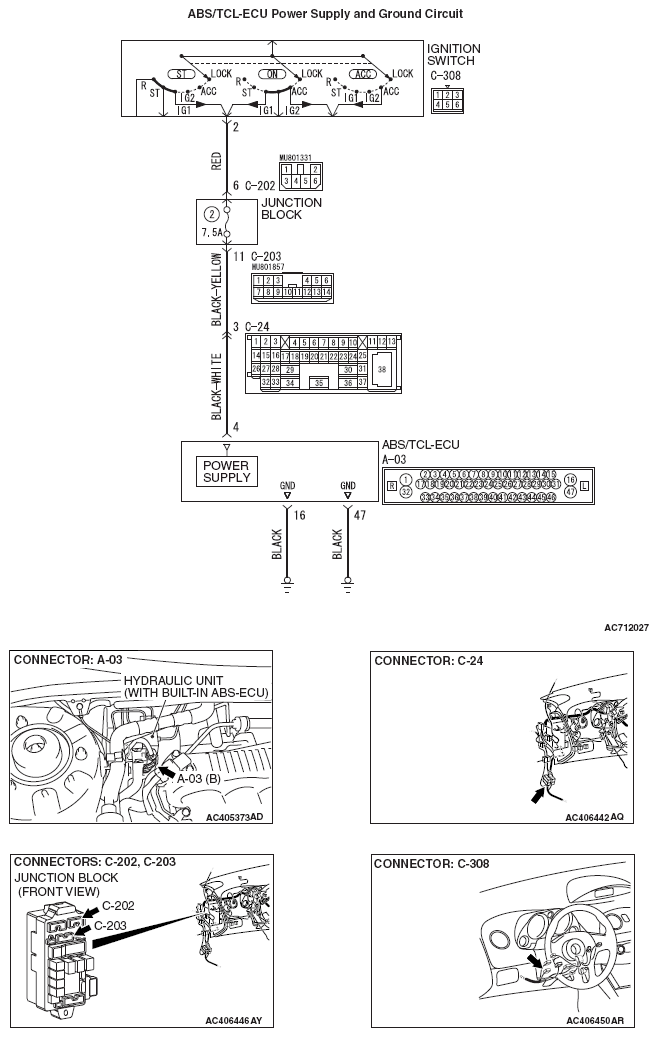

Fig 1: ABS/TCL-ECU Power Supply - Circuit Diagram

G05892245

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
