DTC C1276: Power Supply Circuit Failure Of Valves: Notes

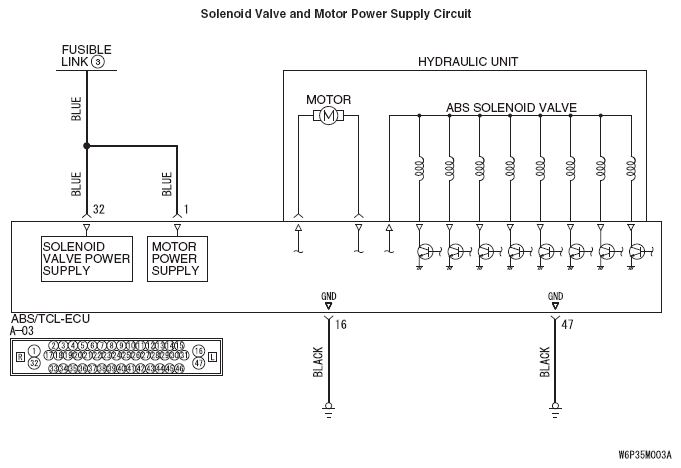

Fig 1: Solenoid Valve And Motor Power Supply Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: If there is any problem in the CAN bus lines, an incorrect diagnostic trouble code may be set. Prior to this diagnosis, diagnose the CAN bus lines. (Refer to TROUBLE CODE DIAGNOSIS ).
