DTC C1216: Rear Left Wheel Speed Sensor (Abnormal Output Signal): Notes

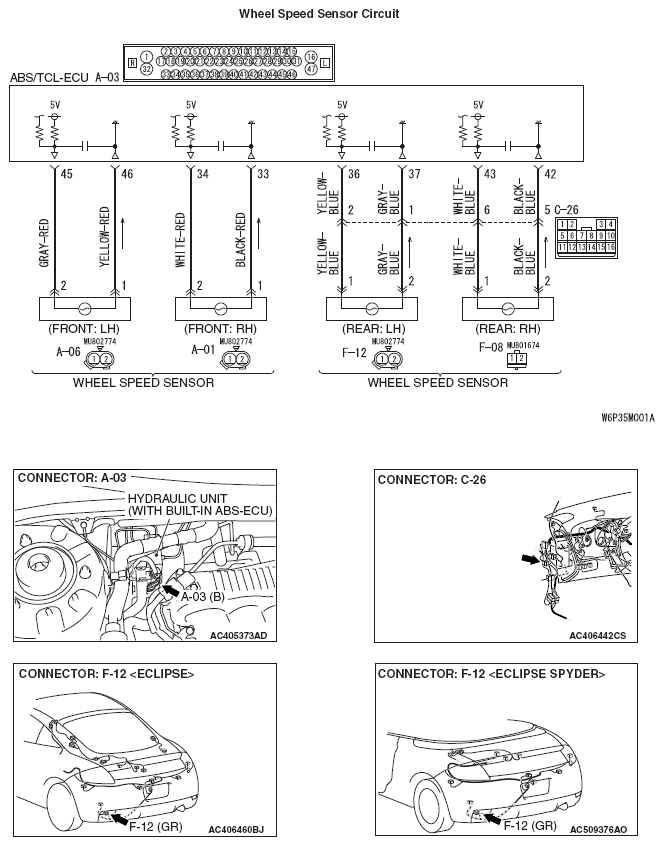

Fig 1: Rear Left Wheel Speed Sensor - Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: If there is any problem in the CAN bus lines, an incorrect diagnostic trouble code may be set. Prior to this diagnosis, diagnose the CAN bus lines. (Refer to TROUBLE CODE DIAGNOSIS ).
