Resistance And Continuity Between Harness-Side Connector Terminals

Required Special Tool:

MB991997: ASC Check Harness

1. Turn the ignition switch to the "LOCK" (OFF) position and disconnect the ABS/TCL-ECU connectors before checking resistance and continuity.
2. Check the resistance and continuity between the terminals indicated in the table below.
3. The terminal layout is shown in the illustration.

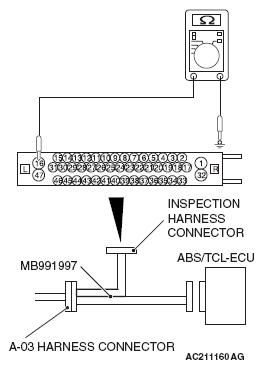

   Fig 1: Checking Resistance And Continuity Between Terminals

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   CONNECTOR TERMINAL REFERENCE



   CONNECTOR TERMINAL NO.	SIGNAL	NORMAL CONDITION
   45 - 46	Front-left wheel speed sensor	1.24 - 1.64 kΩ
   33 - 34	Front-right wheel speed sensor	1.24 - 1.64 kΩ
   36 - 37	Rear-left wheel speed sensor	1.24 - 1.64 kΩ
   42 - 43	Rear-right wheel speed sensor	1.24 - 1.64 kΩ
   16 - body ground	Ground	Continuity exists (2 Ω or less)
   47 - body ground	Ground	Continuity exists (2 Ω or less)
