Crankshaft Position Sensor
>>
Removal And Installation < 2.4L Engine >
Removal And Installation < 2.4L Engine >

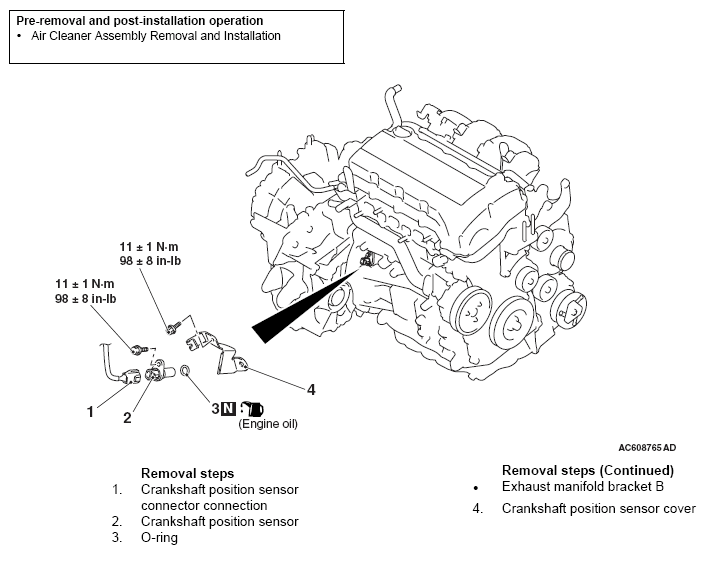

Fig 1: Crankshaft Position Sensor Replacement Components With Torque Specifications - 2.4L Engine
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
