Diagnostic Result Display Method When Using The "Cruise" Indicator Light: Notes

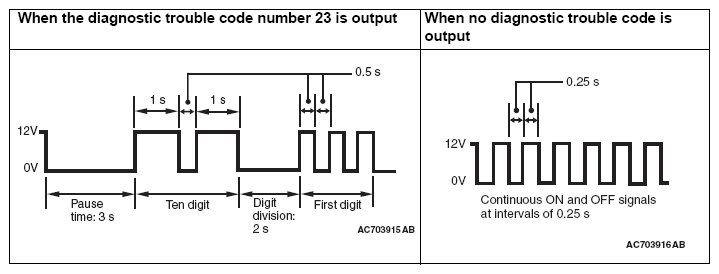

Fig 1: CRUISE Indicator Light Blinking Pattern

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: Other on-board diagnostic items are also output as voltage waveforms corresponding to diagnostic trouble code numbers.
