Home >> Mitsubishi >> 2008 >> Lancer GTS, Standard >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Cruise Control Systems >> Auto-Cruise Control - Lancer >> Auto-Cruise Control >> Auto-Cruise Control System Diagnosis >> Diagnostic Trouble Code Procedures >> DTC 15: Auto-cruise Control Switch System >> Notes

DTC 15: Auto-cruise Control Switch System: Notes

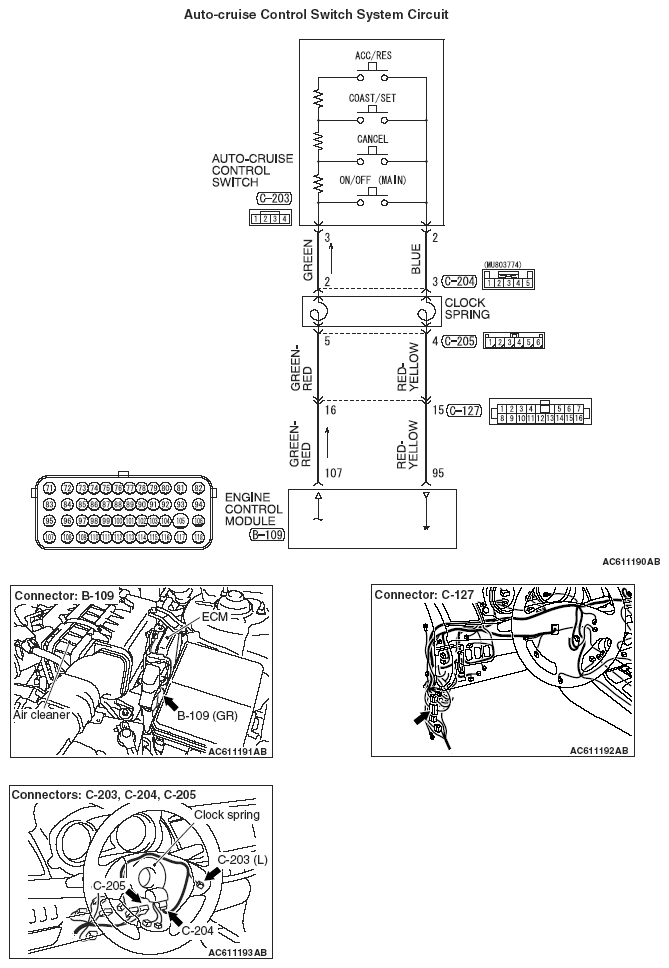

Fig 1: Auto-Cruise Control Switch Circuit Diagram

G05375474

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
