Home >> Mitsubishi >> 2008 >> Lancer Evolution GSR >> Repair and Diagnosis >> Transmission >> Manual Trans >> Manual Transaxle Overhaul - Lancer Evolution >> Clutch Housing >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

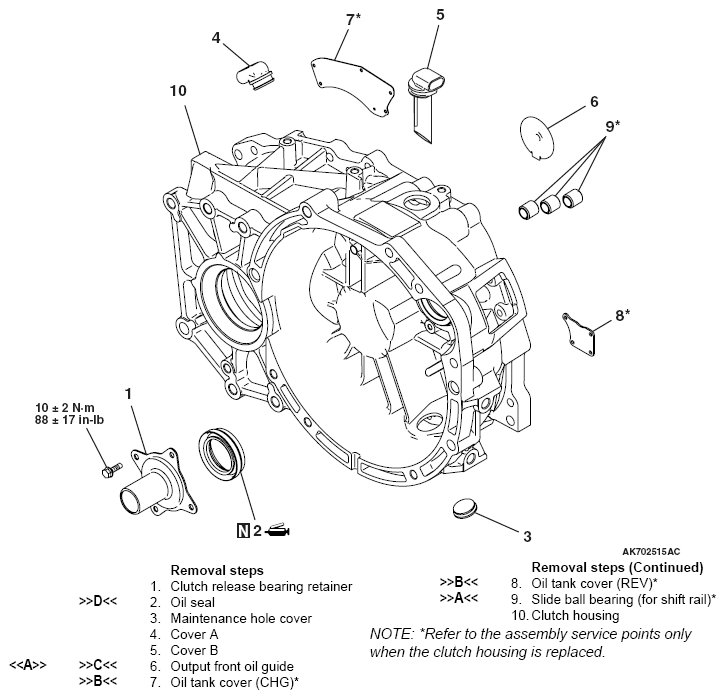

Fig 1: Exploded View Of Clutch Housing Components With Torque Specification
G05394037Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
