Disassembly And Assembly

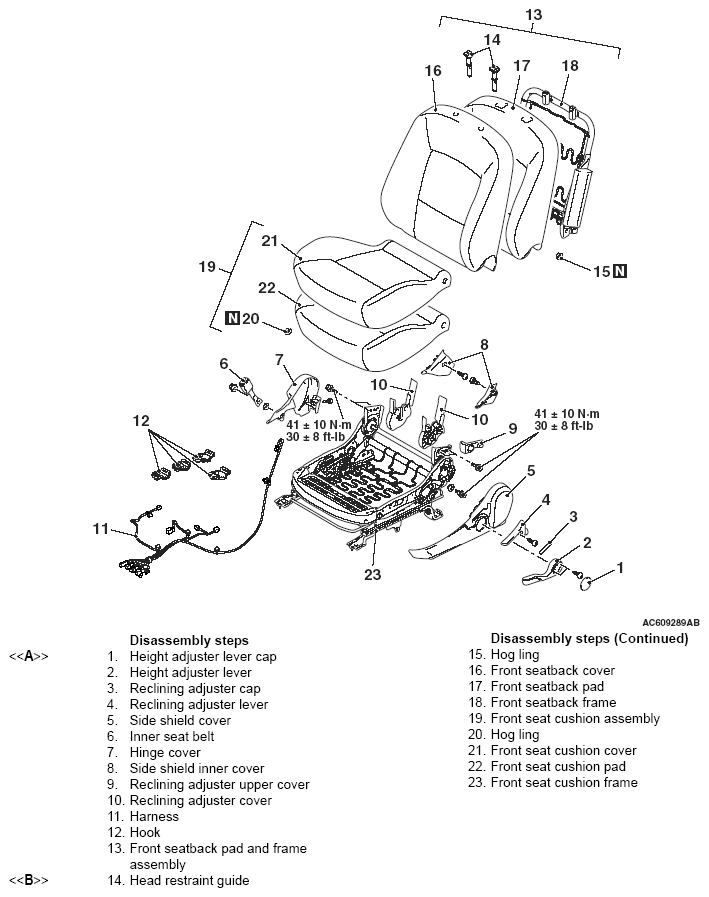

Fig 1: Front Seat Assembly Disassembling / Assembling Replacement Components With Torque Specifications
G05384616Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
