Home >> Mitsubishi >> 2008 >> Galant ES >> Repair and Diagnosis >> Electrical >> Charging Systems >> Charging System >> Generator Assembly >> Removal And Installation < 3.8L Engine - MIVEC> >> Notes

Removal And Installation < 3.8L Engine - MIVEC>: Notes

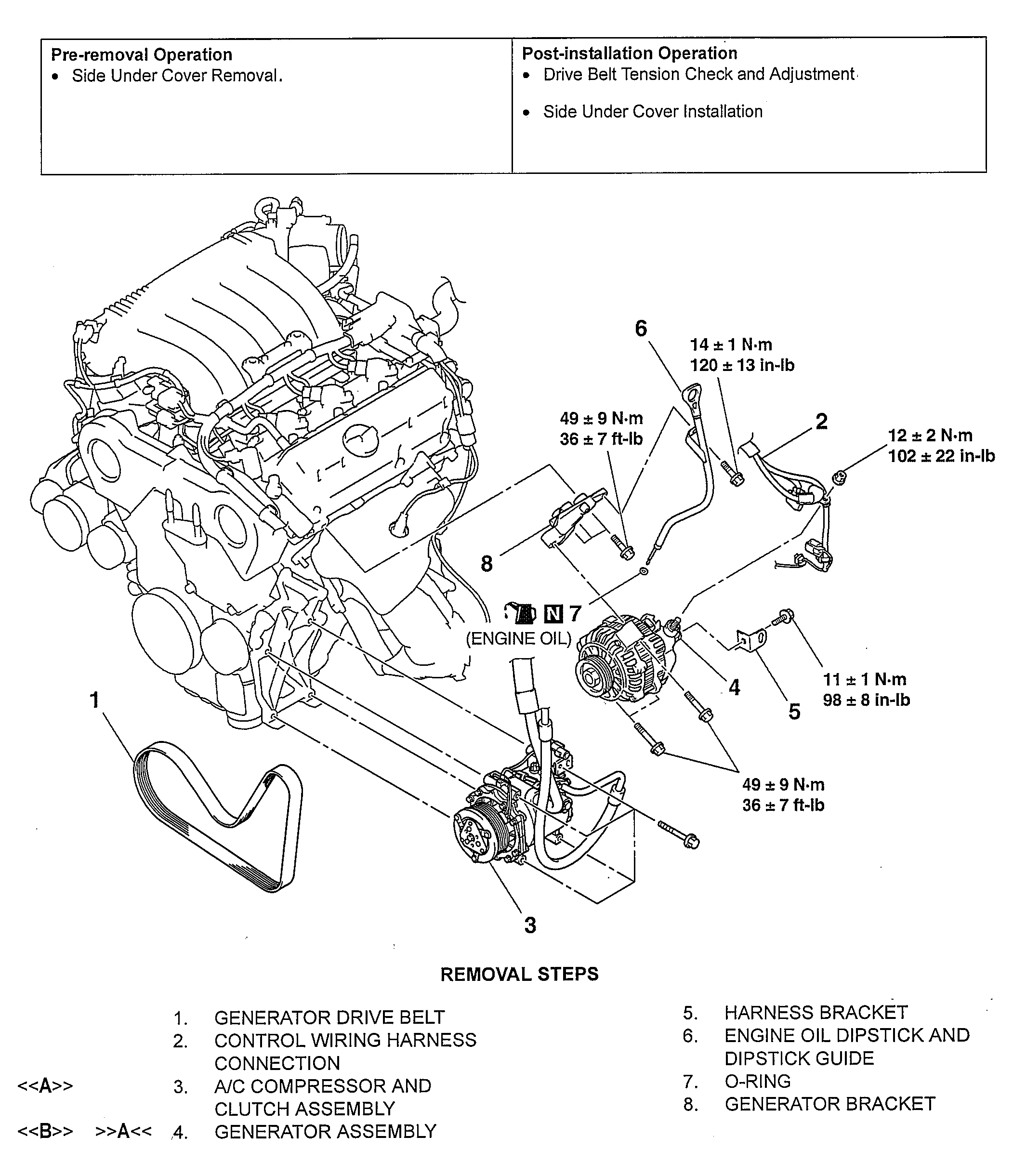

Fig 1: Removing/Installing Generator Assembly - 3.8L Engine - MIVEC With Torque Specifications

G00455285

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
