*Left Front Locks Only - All Others Inoperative: Notes

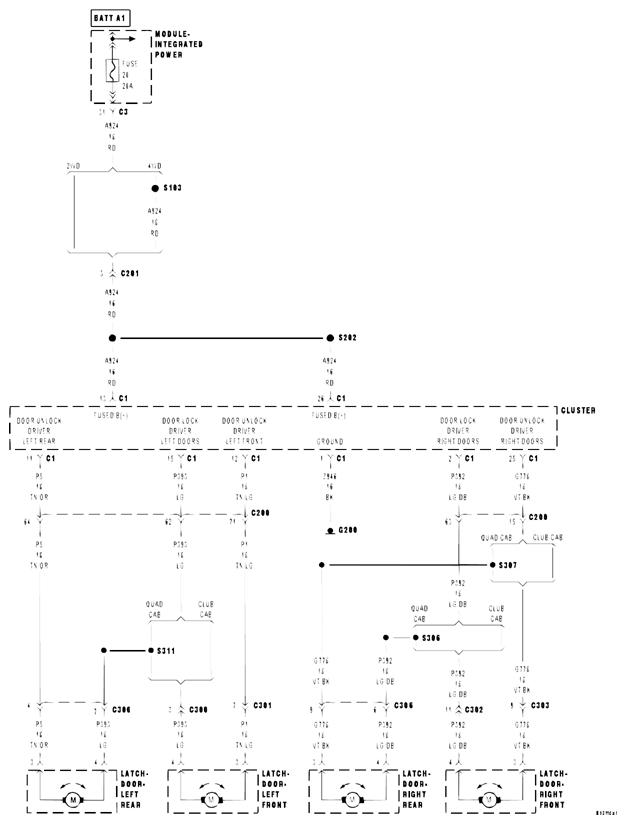

Fig 1: Door Lock/Unlock Driver Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For a complete wiring diagram , refer to appropriate SYSTEM WIRING DIAGRAMS article.

Possible Causes
(P1) DOOR UNLOCK DRIVER LEFT FRONT CIRCUIT SHORTED TO GROUND
(P392) DOOR LOCK DRIVER RIGHT DOORS CIRCUIT SHORTED TO (G778) DOOR UNLOCK DRIVER RIGHT DOORS
(P5) DOOR UNLOCK DRIVER LEFT REAR SHORTED TO (P393) DOOR LOCK DRIVER LEFT DOORS
INSTRUMENT CLUSTER

NOTE: If any of the above circuits are shorted, the fuse may blow after one attempt to operate the locks.
