*Driver Door Unlock Output Circuit Shorted To Ground: Notes

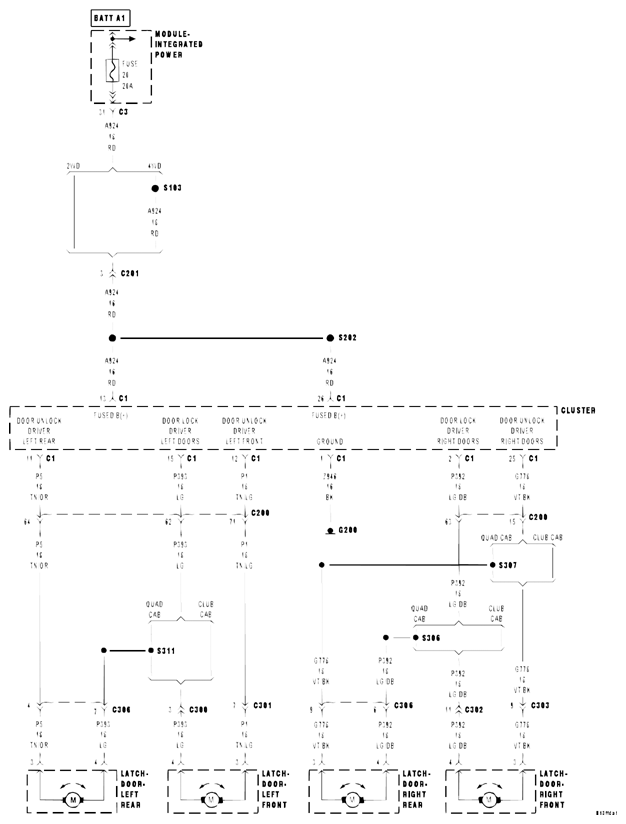

Fig 1: Door Lock/Unlock Driver Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For a complete wiring diagram , refer to appropriate SYSTEM WIRING DIAGRAMS article.

Possible Causes
(P1) DOOR UNLOCK DRIVER LEFT FRONT CIRCUIT SHORTED TO GROUND
(P1) DOOR UNLOCK DRIVER LEFT FRONT CIRCUIT SHORTED TO (P5) DOOR UNLOCK DRIVER LEFT REAR CIRCUIT
(P1) DOOR UNLOCK DRIVER LEFT FRONT SHORTED TO (P393) DOOR LOCK DRIVER LEFT DOORS
INSTRUMENT CLUSTER

NOTE: If any of the above circuits are shorted, the fuse may blow after one attempt to operate the locks.
