How To Read Diagnostic Trouble Codes
- Turn the ignition switch to the "ON" position while pushing the "COAST/SET" switch. Then, within one second, release the "COAST/SET" switch and push the "ACC/RES" switch.
- Read a diagnostic trouble code by observing the flash display pattern of the "CRUISE" indicator light in the combination meter.DIAGNOSTIC RESULT DISPLAY METHOD WHEN USING THE "CRUISE" INDICATOR LIGHT

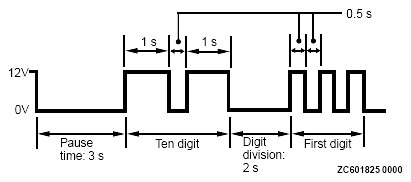

When the diagnostic trouble code number 23 is output When no diagnostic trouble code is output
NOTE:
Other on-board diagnostic items are also output as voltage waveforms corresponding to diagnostic trouble code numbers.
