VIN Writing & Variant Coding For ECM Replacement - Service Manual Revision (TSB-08-13-013)
Publication date: 2008-08-01Reference number: TSB-08-13-013
VIN WRITING & VARIANT CODING FOR ECM REPLACEMENT - SERVICE MANUAL REVISION
TECHNICAL SERVICE BULLETIN
Reference Number(s): TSB-08-13-013, Date of Issue:
August 01, 2008
| MITSUBISHI: | 2007-08 Outlander; 2008-09 Lancer; 2008 Lancer Evolution |
NOTE:
TSB Revision: TSB-08-13-013
PURPOSE
The information that it is necessary to write the VIN and perform variant coding when replacing the Engine Control Module (ECM) is incorrect in the applicable service manual. This Technical Service Bulletin provides the correct information.
NOTE:
Instructions to conduct VIN writing and variant coding can be found in Group 00 - GENERAL in the applicable service manual and in the Advanced Electronic Service Procedures (AESP) self study training manual.
AFFECTED VEHICLE(S)
2007-08 Outlander
2008-09 Lancer
2008 Lancer Evolution
APPLICABLE MANUAL(S)
APPLICABLE MANUAL(S)
| Manual | Publication No. | Description/Pg. No. | Attachment |
|---|---|---|---|

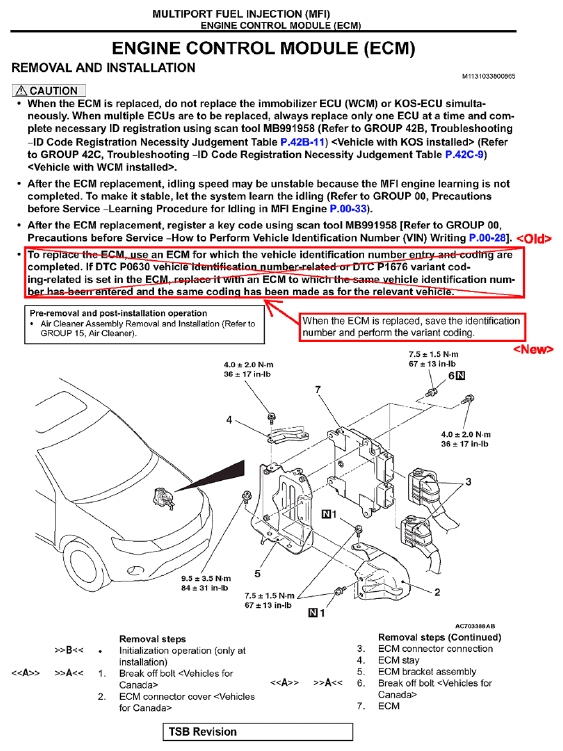

| 2007 OUTLANDER Service Manual | MSCD007B2007 | Engine ECU Removal and Installation, pg. 13Aa-37, 38 | 2 |
| 2008 OUTLANDER Service Manual | MSCD007B2008 | Engine ECU Removal and Installation, pg. 13A-838 | |

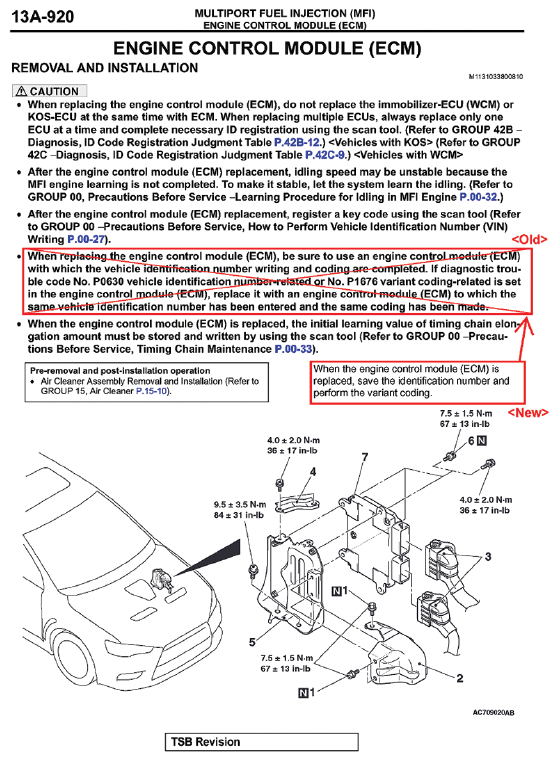

| 2008 LANCER EVOLUTION Service Manual | MSCD206B2008 | Engine Control Module (ECM) Removal and Installation, pg. 13A-920 | 3 |

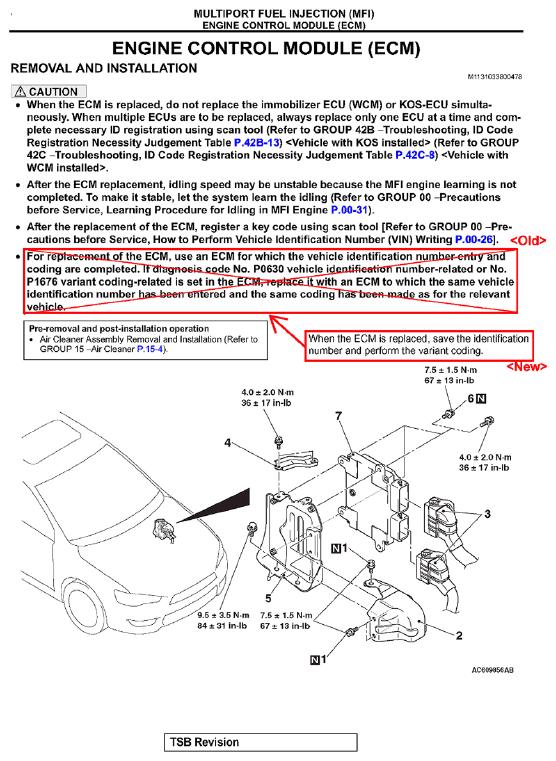

| 2008 LANCER Service Manual | MSCD106B2008 | Engine Control Module (ECM) Removal and Installation, pg. 13A-952 | 4 |
| 2009 LANCER Service Manual | MSCD106B2009 | Engine Control Module (ECM) Removal and Installation <2.0L ENGINE, pg. 13A-947 Engine Control Module (ECM) Removal and Installation <2.4L ENGINE, pg. 13B-835 |
