Inspection Procedure 5: When The TCL Switch Is Pushed On, TCL Does Not Cancel: Notes

WARNING: This page is about a different variant/trim than selected.

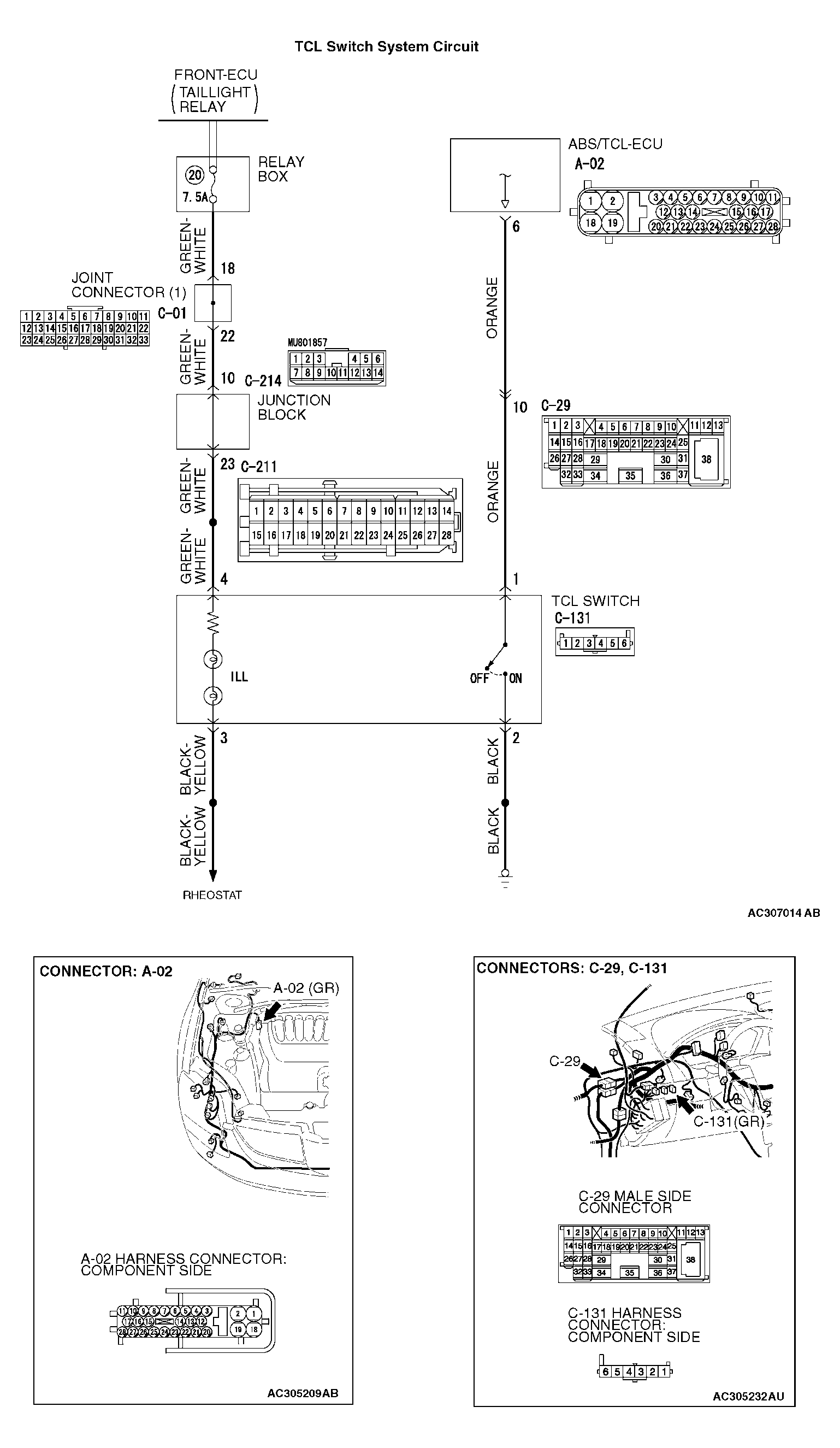

Fig 1: TCL Switch System Circuit
G04253837Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
