General Circuit Diagram For The Keyless Entry System

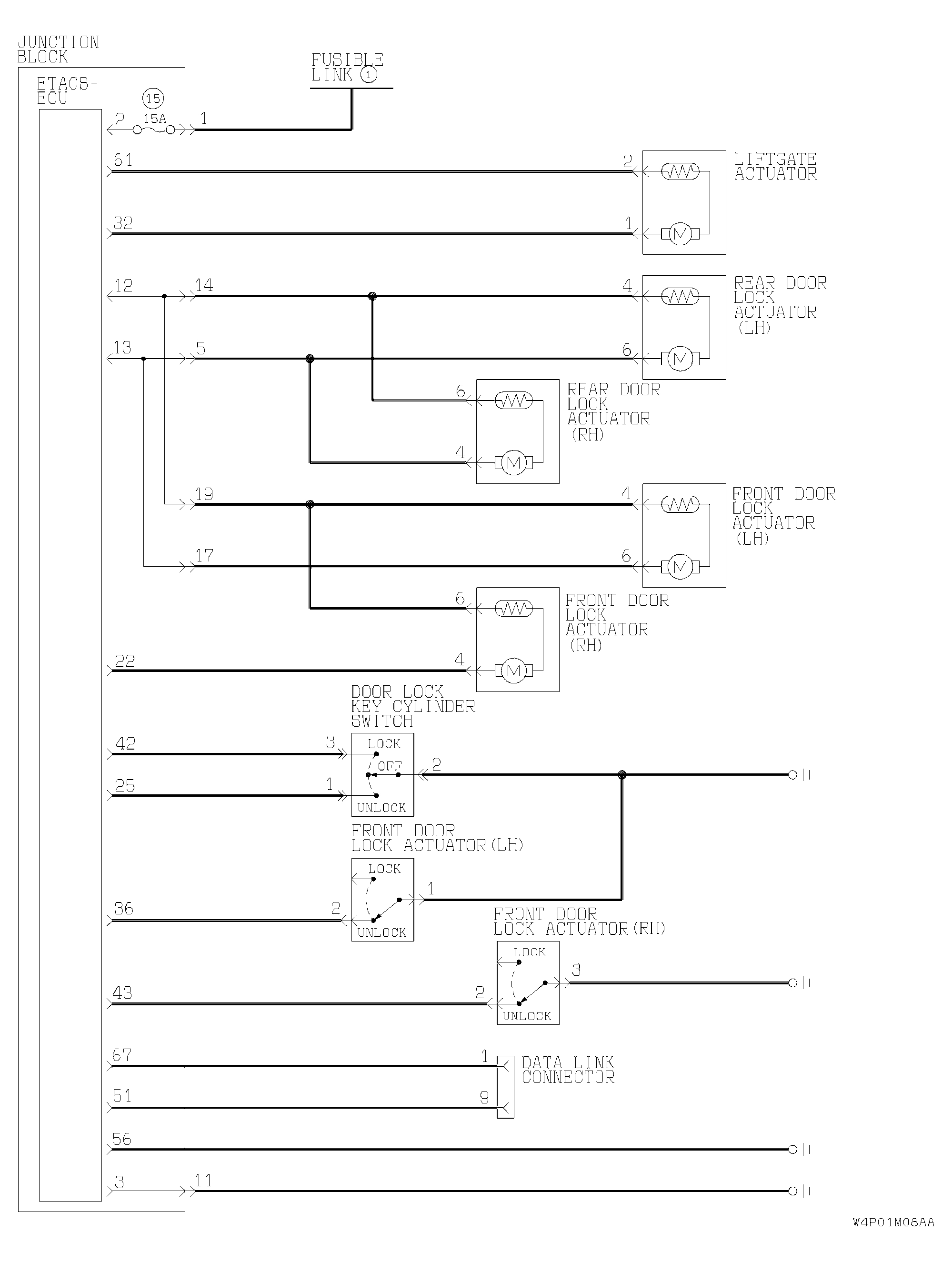

Fig 1: Keyless Entry System Circuit Diagram

G04290258

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
