Resistance And Continuity Between Harness-Side Connector Terminals

  1. Disconnect the connector A-32, and connect special tool ABS Check Harness (MB991952) to the wiring harness-side connector.
    NOTE: Do not connect special tool ABS Check Harness (MB991952) to the TCL/ASC-ECU.
  2. Measure the resistance and continuity between the terminals indicated in the table below.

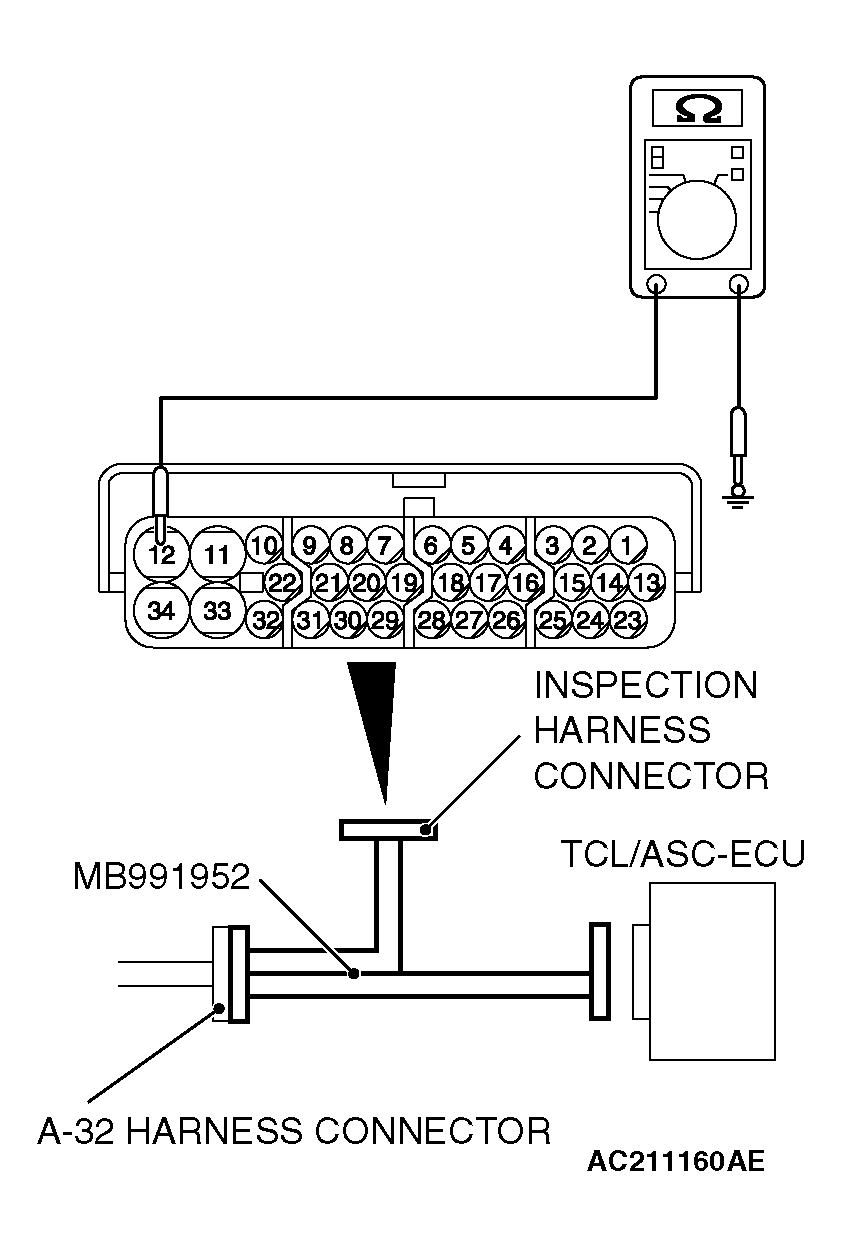

    Fig 1: Measuring Resistance & Continuity Between Terminals
    G04312513Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CONNECTOR TERMINAL NUMBER

    CONNECTOR TERMINAL NO. SIGNAL NORMAL CONDITION
    22 - 31 Front-left wheel speed sensor 1.24 - 1.64 kΩ
    21 - 30 Front-right wheel speed sensor 1.24 - 1.64 kΩ
    6 - 7 Rear-left wheel speed sensor 1.24 - 1.64 kΩ
    8 - 9 Rear-right wheel speed sensor 1.24 - 1.64 kΩ
    12 - body ground Ground Less than 2 ohms
    34 - body ground Ground Less than 2 ohms
