Auto-Cruise Control Switch Check
- Remove the auto-cruise control switch. (Refer to AUTO-CRUISE CONTROL ).

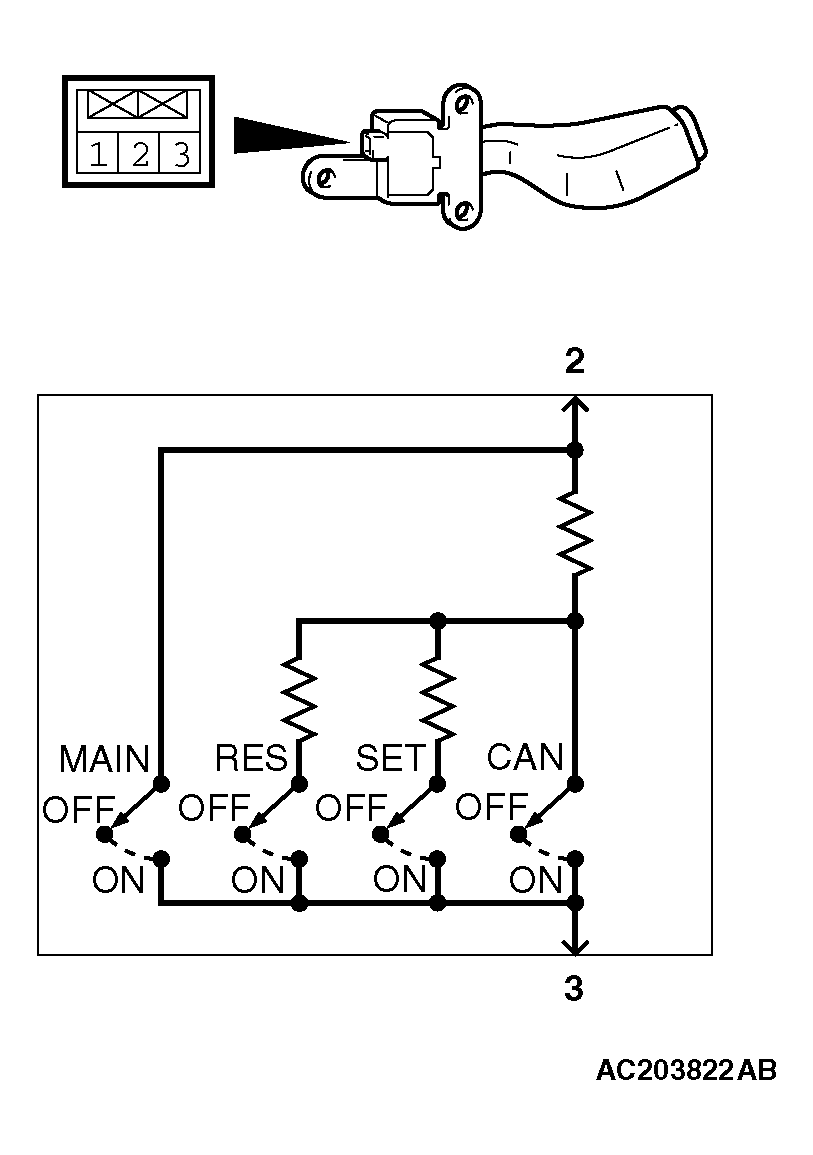

- Measure the resistance between terminal 2 and terminal 3 when each of the "COAST/SET", "ACC/RES", "CANCEL" and "CRUISE" (MAIN) switches is pressed. If the values measured at the time correspond to those in the table below, the resistance values are correct.THROTTLE POSITION SENSOR
SWITCH POSITION SPECIFIED CONDITION "CRUISE" (MAIN) switch "OFF" Open circuit "CRUISE" (MAIN) switch "ON" Less than 2 ohms "CANCEL" switch ON Approximately 100 Ω "ACC/RES" switch ON Approximately 887 Ω "COAST/SET" switch ON Approximately 300 Ω
