DTC 15: Auto-Cruise Control Switch System: Notes

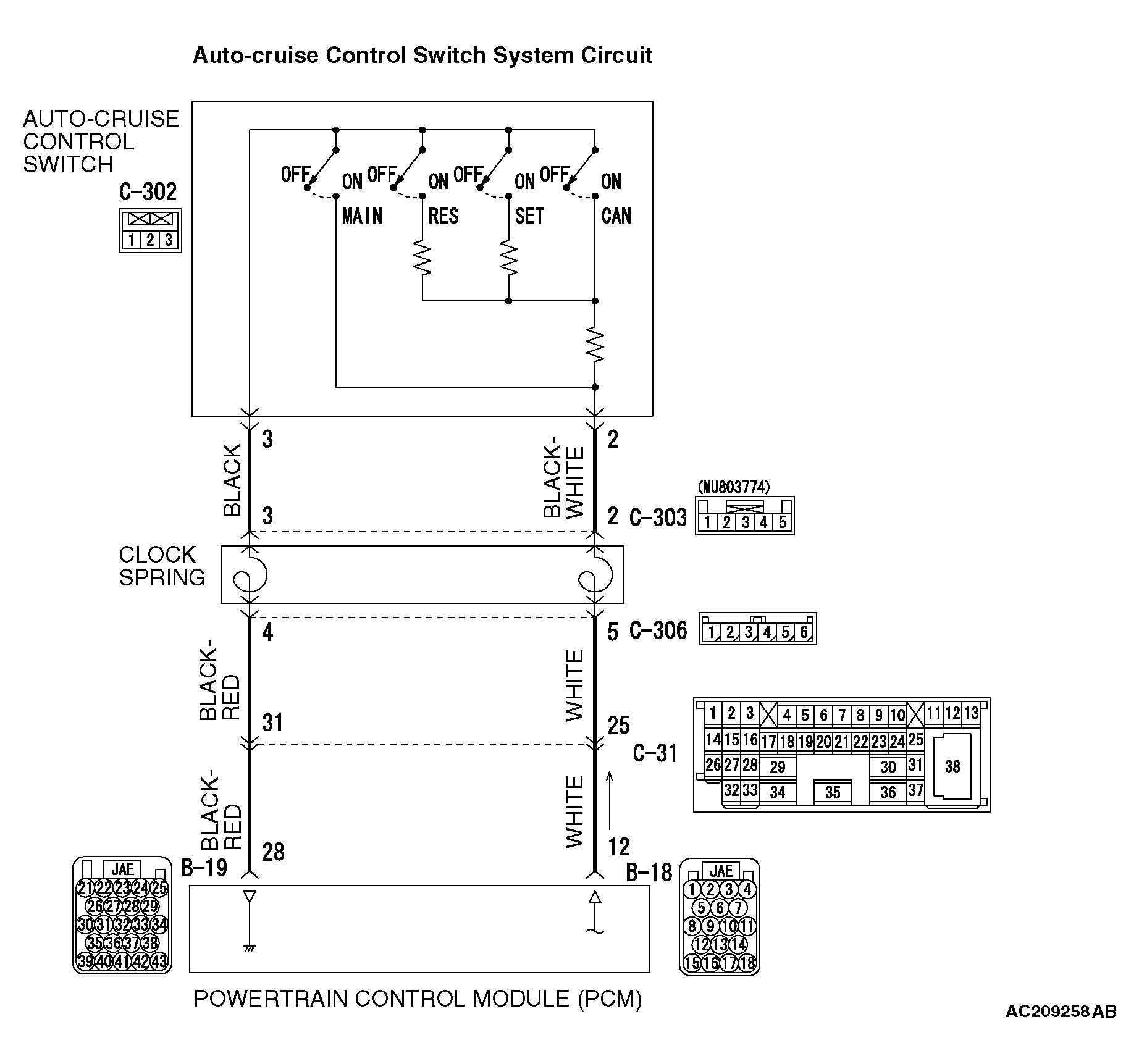

Fig 1: Auto-Cruise Control Switch System Circuit Diagram
G04310678Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

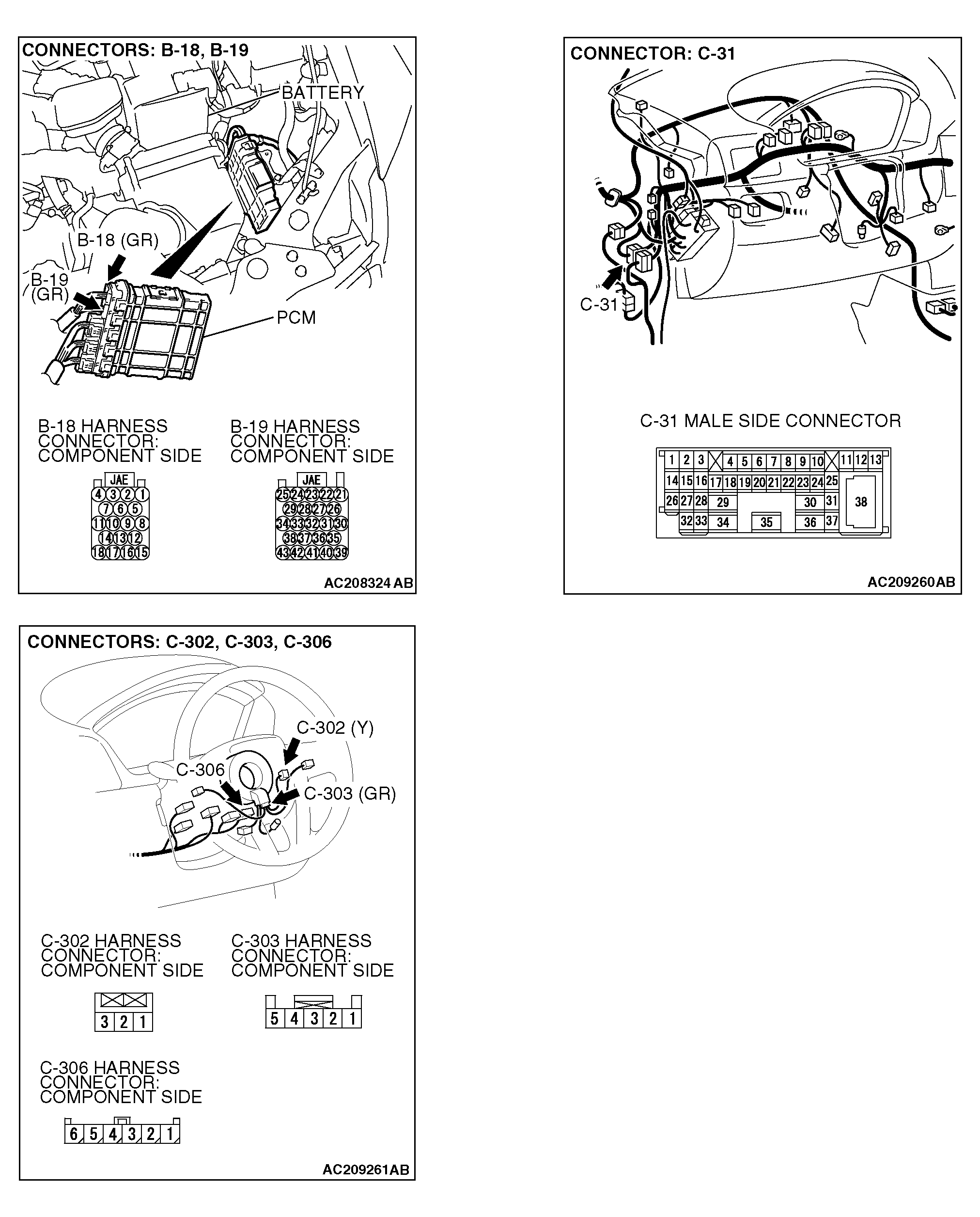

Fig 2: Auto-Cruise Control Switch System Connector Terminal Identification
G04310679Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
