Home >> Mitsubishi >> 2007 >> Eclipse SE, Standard >> Repair and Diagnosis >> Engine Performance >> Tune-Up >> Ignition System >> Crankshaft Position Sensor >> Removal And Installation < 3.8L Engine > >> Notes

Removal And Installation < 3.8L Engine >: Notes

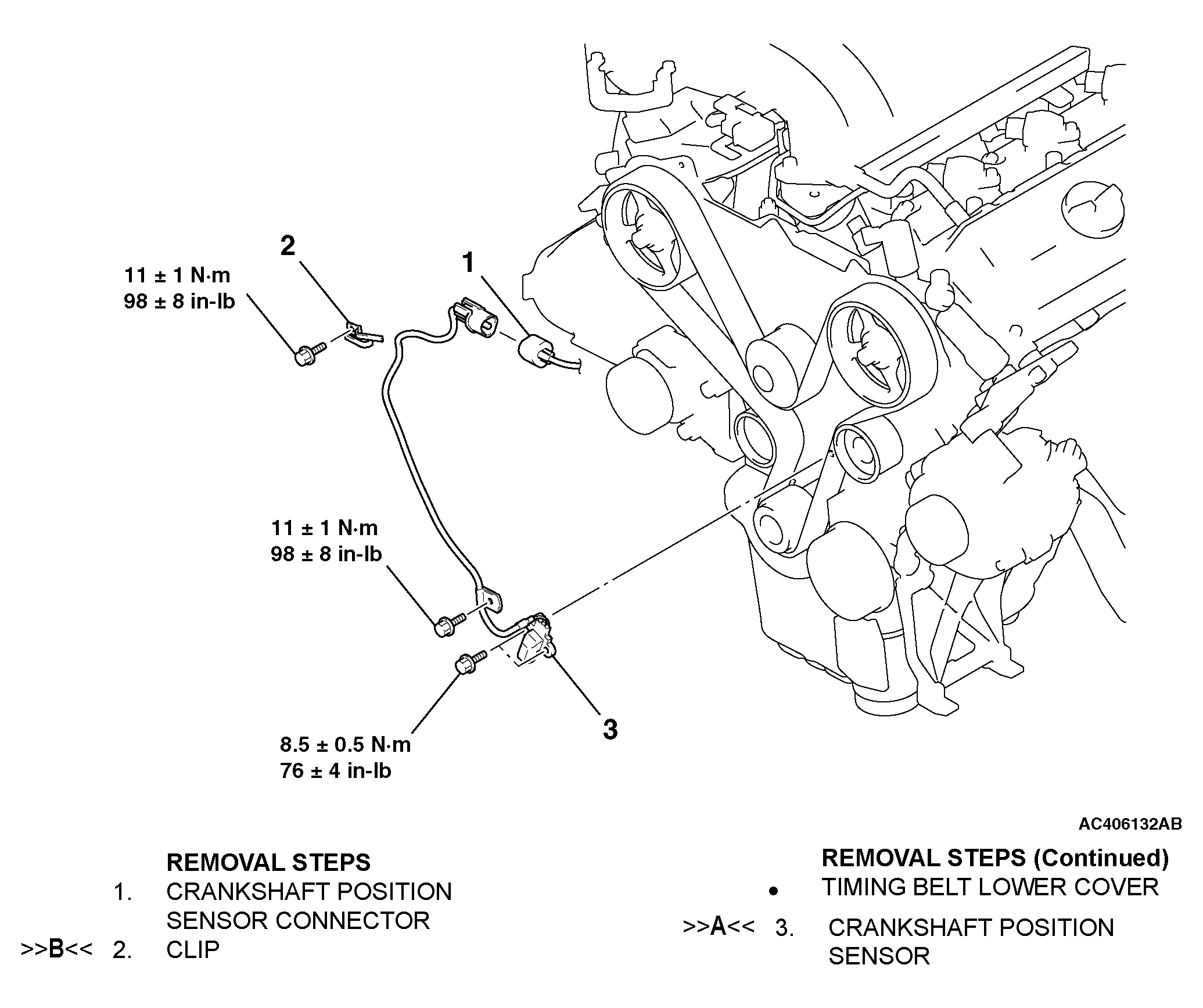

Fig 1: Removing/Installing Crankshaft Position Sensor With Torque Specifications (3.8L Engine)

G04237134

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
