Special Tools

SPECIAL TOOLS SPECIFICATIONS

TOOL TOOL NUMBER AND NAME SUPERSESSION APPLICATION
G04237252G04237253G04237254G04237255G04237256G04237257G04237258
G04237252G04237253G04237254G04237255G04237256G04237257G04237258
G04237252G04237253G04237254G04237255G04237256G04237257G04237258
G04237252G04237253G04237254G04237255G04237256G04237257G04237258
G04237252G04237253G04237254G04237255G04237256G04237257G04237258
G04237252G04237253G04237254G04237255G04237256G04237257G04237258
G04237252G04237253G04237254G04237255G04237256G04237257G04237258
 MB991958

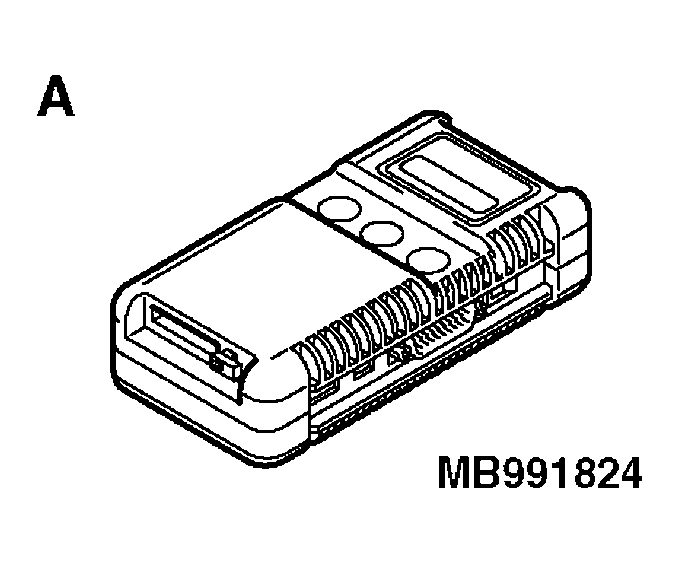

  1. A: MB991824
  2. B: MB991827
  3. C: MB991910
  4. D: MB991911
  5. E: MB991914
  6. F: MB991825
  7. G: MB991826

MUT-III sub assembly
  1. A: Vehicle communication interface (V.C.I.)
  2. B: MUT-III USB cable
  3. C: MUT-III main harness A (Vehicles with CAN communication system)
  4. D: MUT-III main harness B (Vehicles without CAN communication system)
  5. E: MUT-III main harness C (for DaimlerChrysler models only)
  6. F: MUT-III measurement adapter
  7. G: MUT-III trigger harness
 MB991824-KIT
NOTE: G: MB991826 MUT-III trigger harness is not necessary when pushing V.C.I. ENTER key.
 Checking data list
CAUTION: For vehicles with CAN communication, use MUT-III main harness A to send simulated vehicle speed. If you connect MUT-III main harness B or C instead, the CAN communication does not function correctly.
G04237259

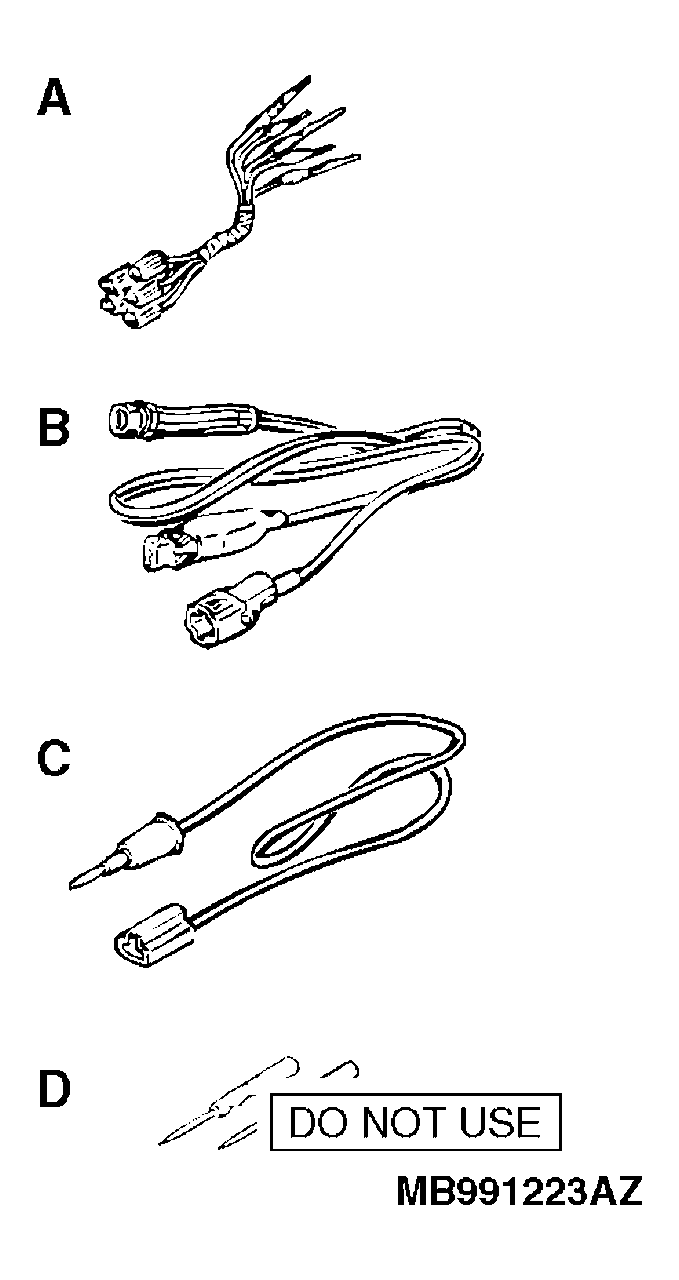

 MB991223
  1. A: MB991219
  2. B: MB991220
  3. C: MB991221
  4. D: MB991222

Harness set
  1. A: Test harness
  2. B: LED harness
  3. C: LED harness adaptor
  4. D: Probe
 General service tools Checking the continuity and measuring the voltage at the harness connector
G04237260
 MB992006
Extra fine probe		 General service tool Continuity check and voltage measurement at harness wire or connector for loose, corroded or damaged terminals, or terminals pushed back in the connector.
G04237261
 MB991923
Power plant ECU check harness		 - Measuring the terminal voltage at the ECM < M/T > or PCM < A/T >
G04237262
 MB991658
Test harness		 Tool not available Checking throttle position sensor
