Removal And Installation < 2.4L Engine >

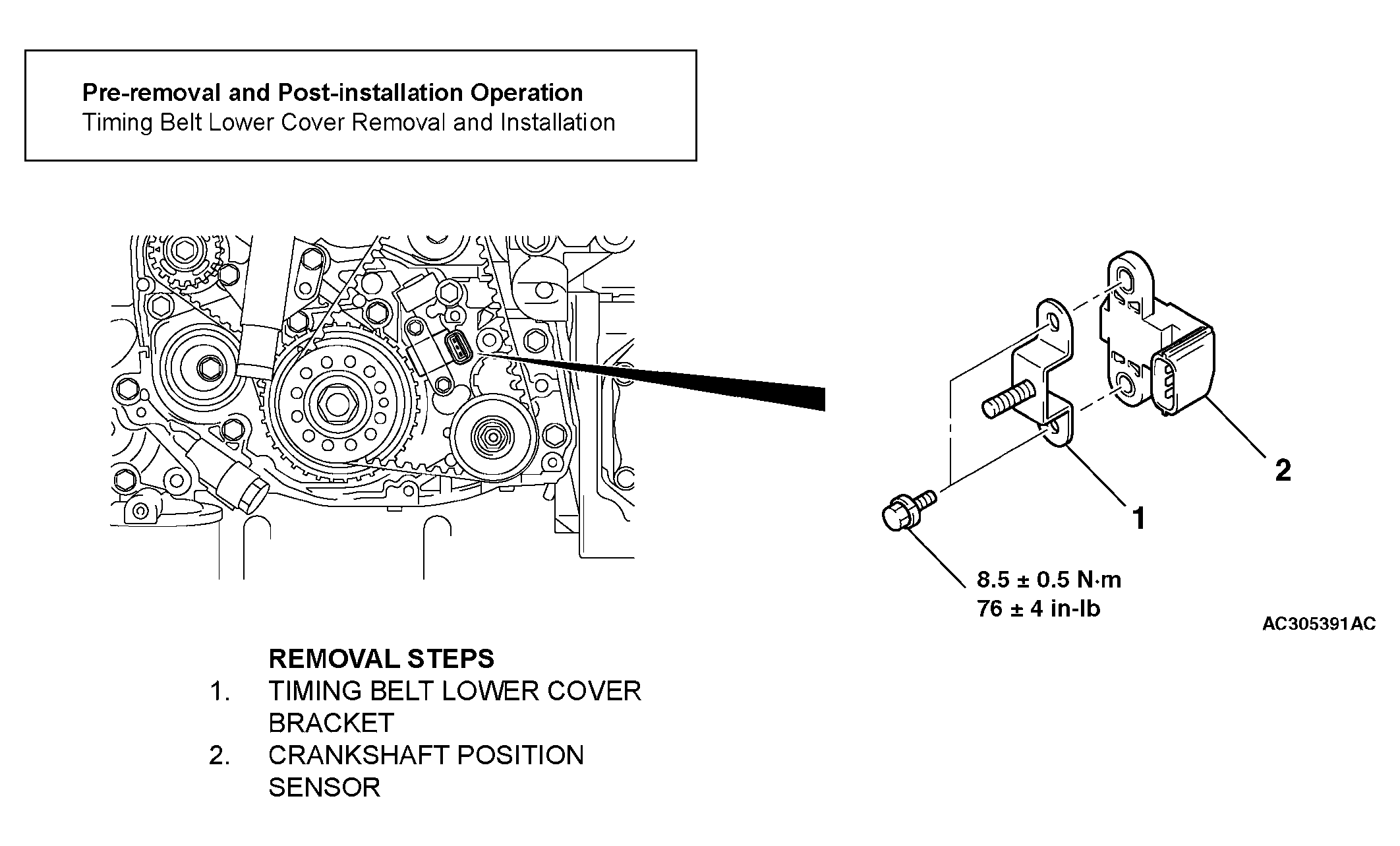

Fig 1: Removing/Installing Crankshaft Position Sensor With Torque Specifications (2.4L Engine)

G04237133

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
