Removal And Installation

WARNING:

Never repair or disassemble the front impact sensor. If faulty, replace it.
Handle the front impact sensors very carefully, taking care not to drop them or otherwise a new one is required.
Replace the sensors with new ones after the air bag has deployed.

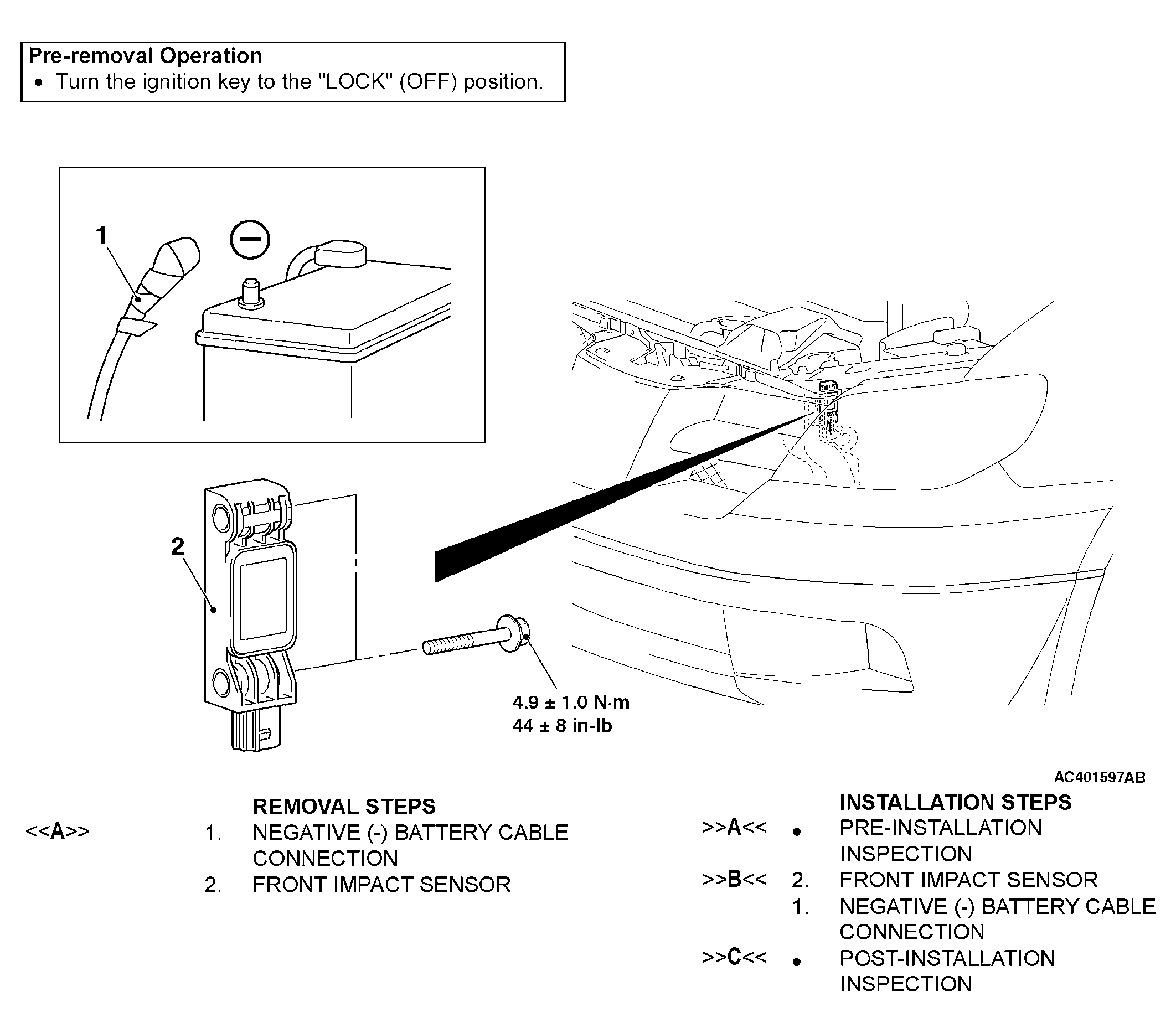

Fig 1: Removing & Installing Front Impact Sensors

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: The Figure on the left indicates the left front impact sensor.
