Removal And Installation

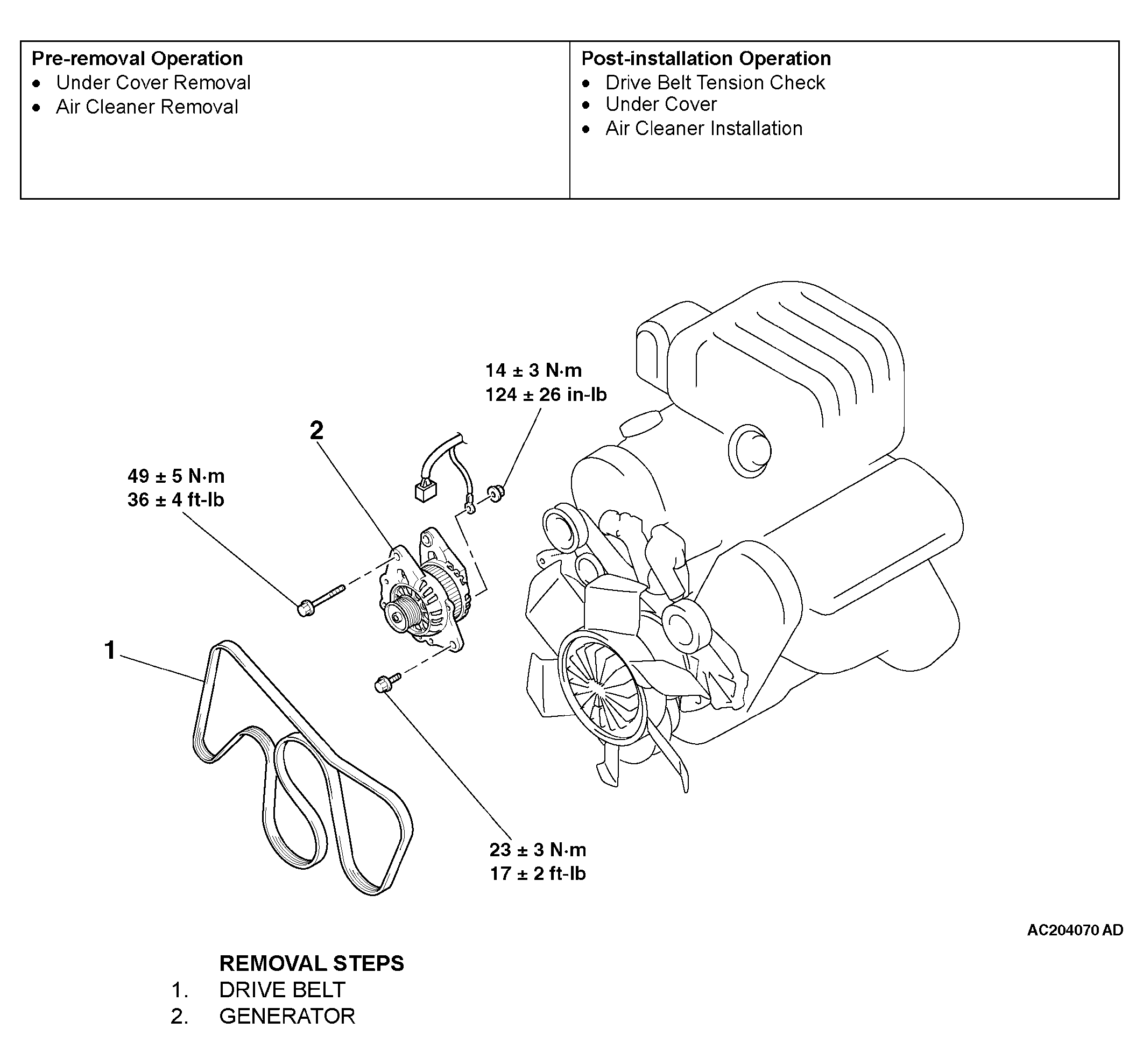

Fig 1: Removing/Installing Generator Assembly With Torque Specifications

G04265066

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
