Transfer Oil Replacement

  1. Remove the filler plug.
  2. Remove the drain plug and drain the oil.
  3. Tighten the drain plug to the specified torque.

    Tightening torque: 32 +/- 2 N. m (23 +/- 2 ft-lb)

  4. Fill with MITSUBISHI limited slip differential oil (LSD) or equivalent until the level comes to the lower portion of filler plug hole.

    Quantity: 0.6 dm 3  (0.63 quart)

  5. Tighten the filler plug to the specified torque.

    Tightening torque: 32 +/- 2 N. m (23 +/- 2 ft-lb)

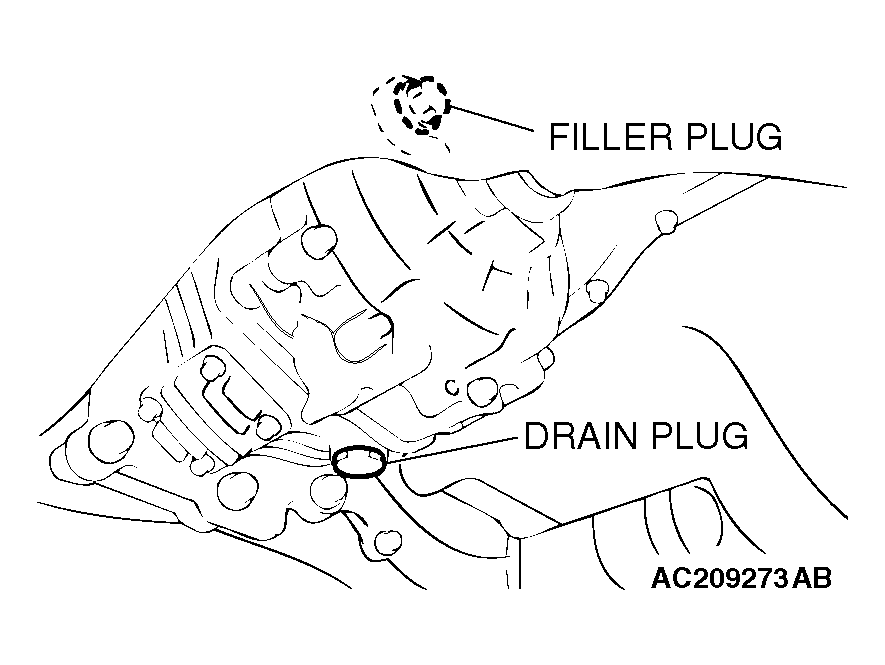

    Fig 1: Removing Filler Plug
    G04296622Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
