Lubrication And Sealing Points

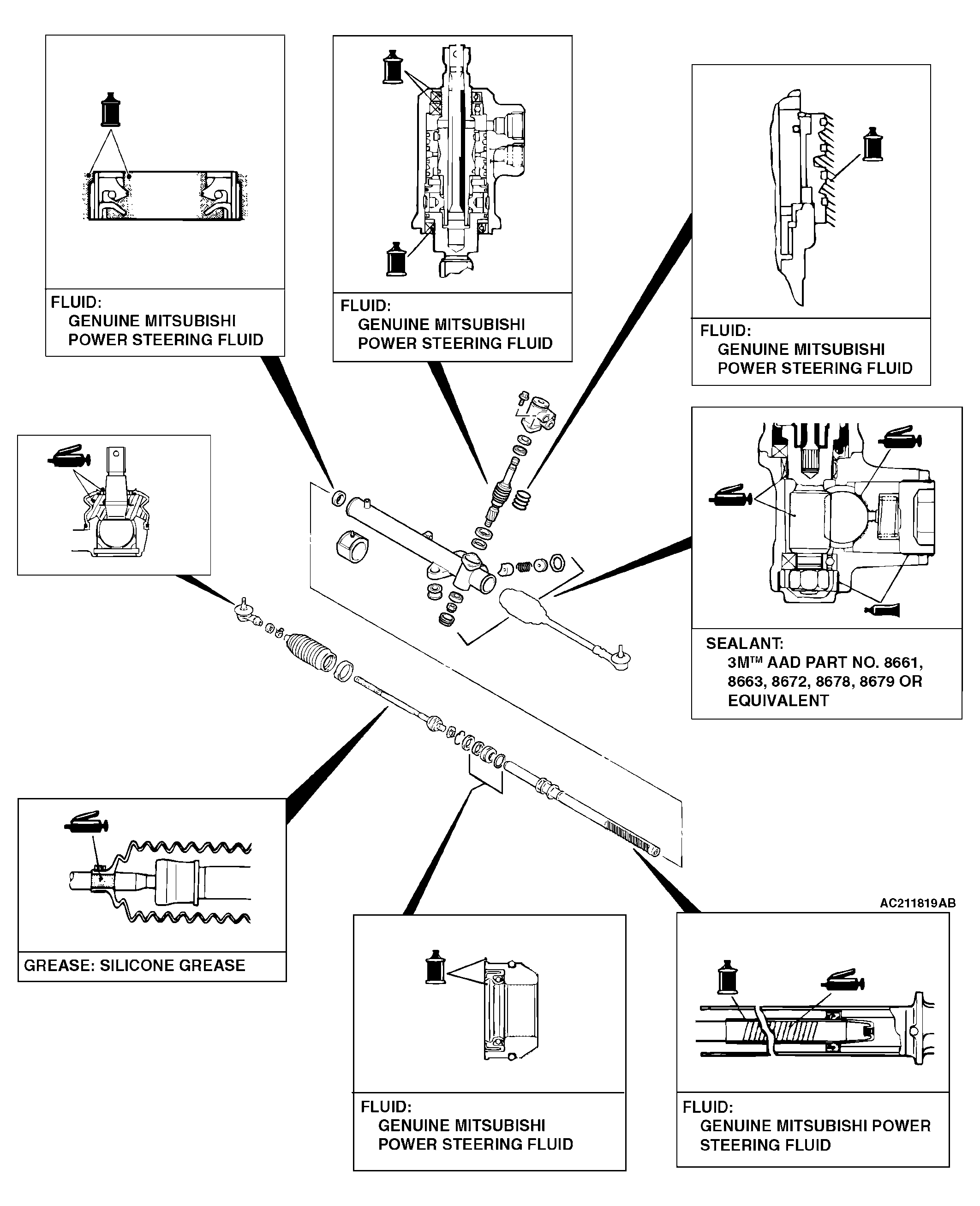

Fig 1: Identifying Lubrication And Sealing Points

G04297611

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
