>> C << Post-Installation Inspection

  1. Connect the negative (-) battery cable.
  2. Turn the ignition switch to "ON" position.
  3. Does the SRS warning light illuminate for approximately seven seconds, and then goes out?
  4. If yes, the SRS system is functioning properly. If no, consult page SRS WARNING LIGHT CHECK  .

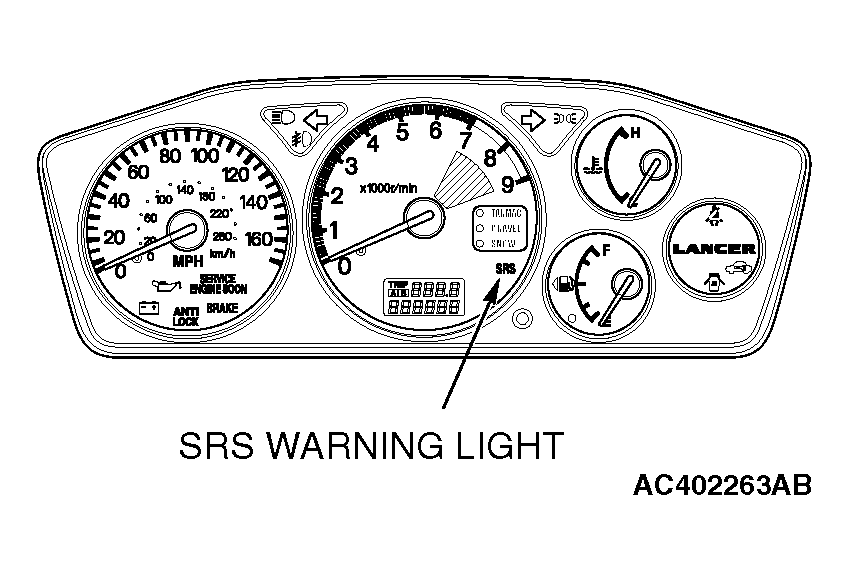

    Fig 1: Identifying SRS Warning Light
    G04298193Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
