Lateral G-Sensor Connector End View (D-38)

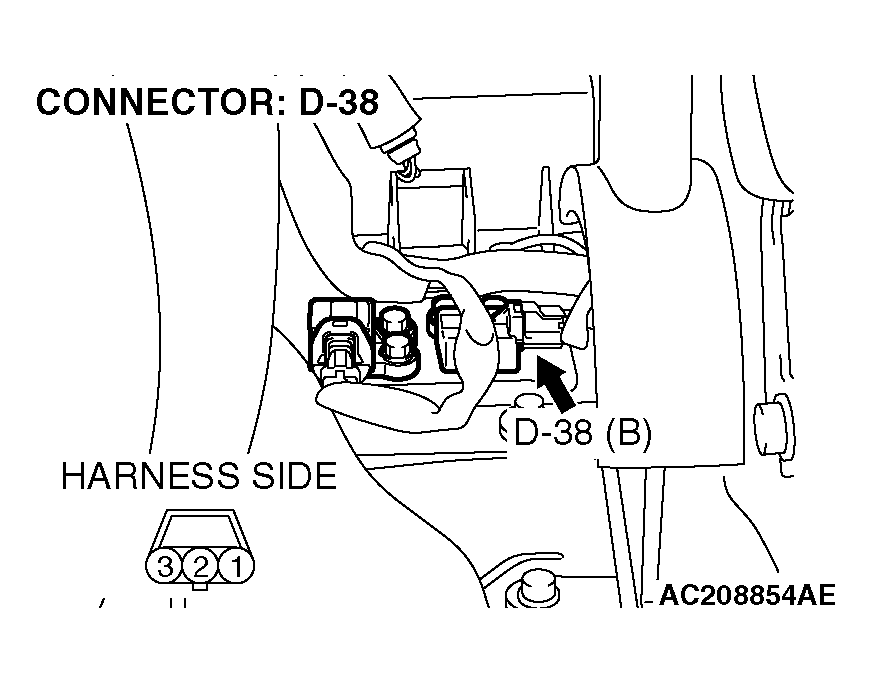

Fig 1: Lateral G-Sensor Connector End View (D-38)

G04297411

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
