17. Brake Hoses (Check For Deterioration Or Leaks)

Inspection of brake hoses should be included in all brake service operations.

The hoses should be checked for:

1. Incorrect length, severe surface cracking, pulling, scuffing or worn spots. (If the fabric casing of the hoses is exposed by cracks or abrasion in the rubber hose cover, the hoses should be replaced. Eventual deterioration of the hose and possible bursting failure may occur.)
2. Incorrect installation, twisting or interference with wheel, tire or chassis.

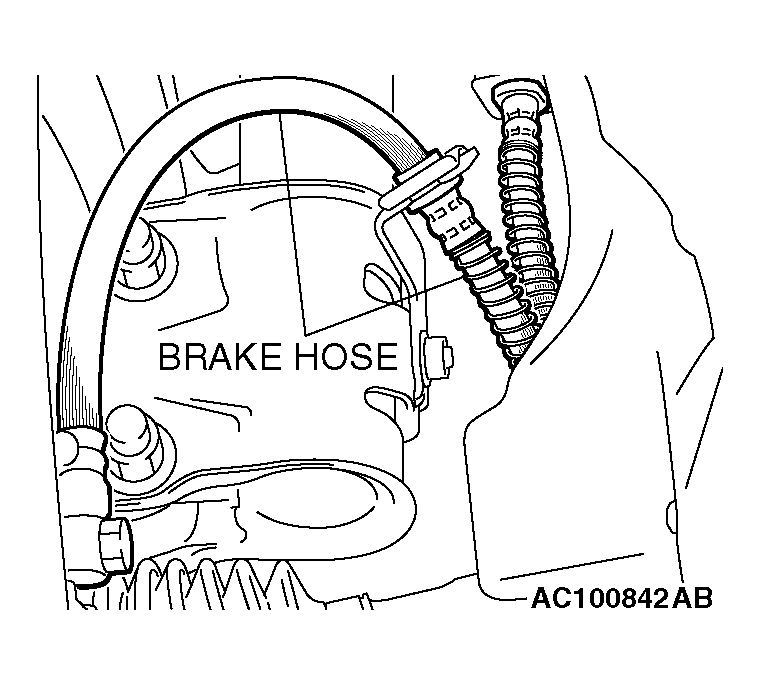

   Fig 1: Identifying Brake Hoses

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
