Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

< BENCH SEAT >

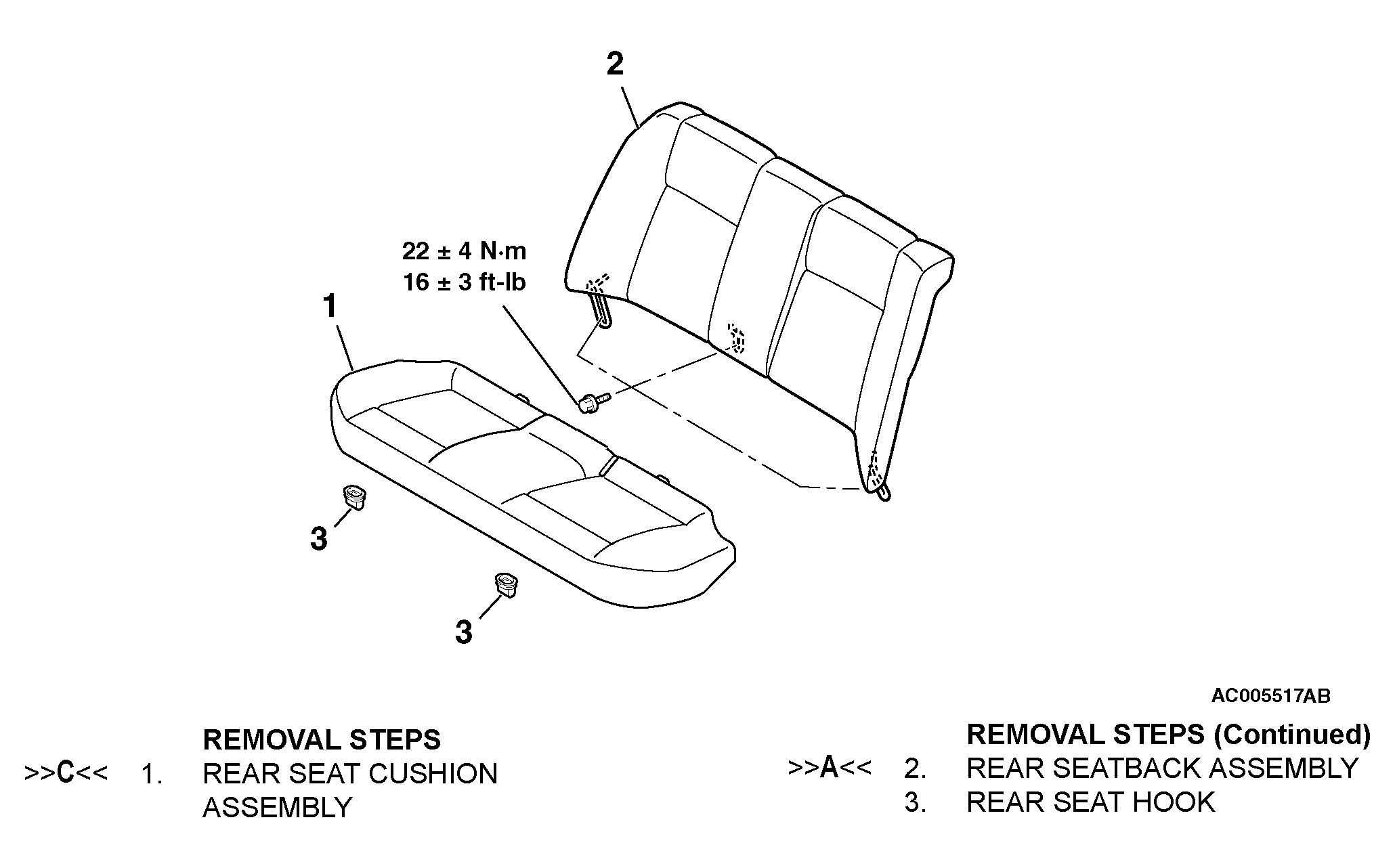

Fig 1: Removing/Installing Rear Seat (Bench Seat)
G04278119Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

< SPRIT SEAT >

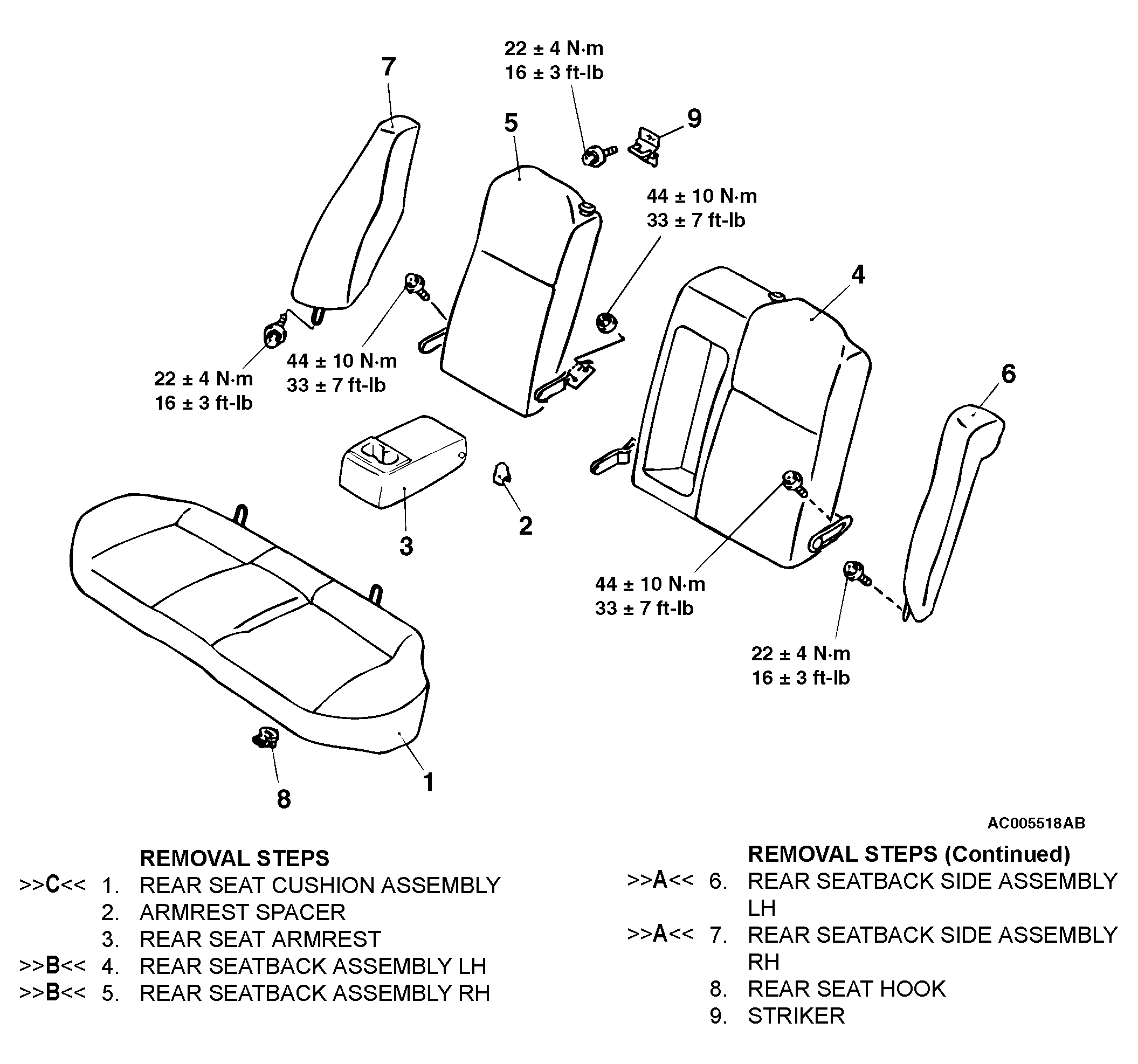

Fig 2: Removing/Installing Rear Seat (Sprit Seat)
G04278120Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
