Disassembly And Assembly

WARNING: This page is about a different variant/trim than selected.

< BENCH SEAT >

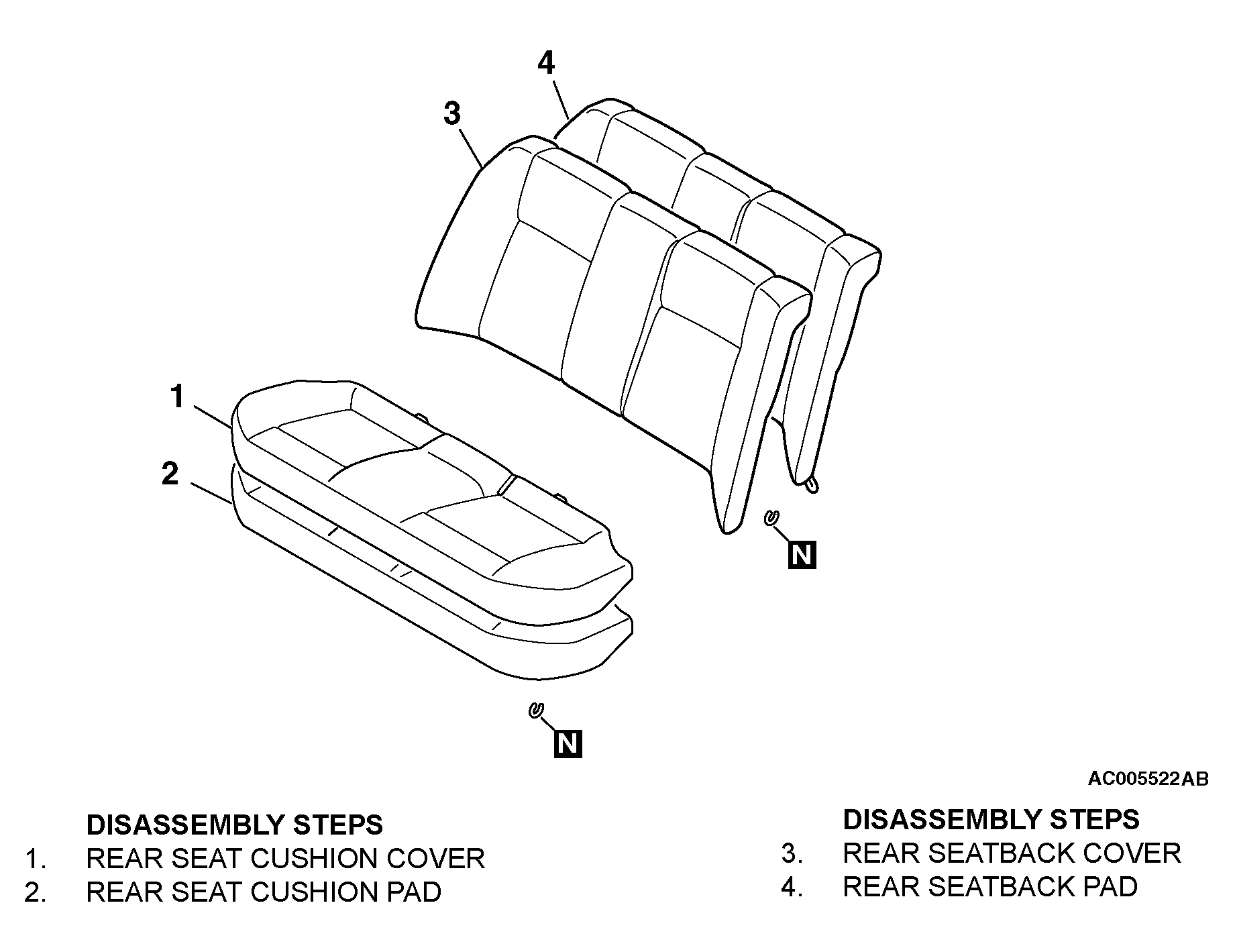

Fig 1: Disassembling View Of Rear Seat (Bench Seat)
G04278124Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

< SPLIT SEAT >

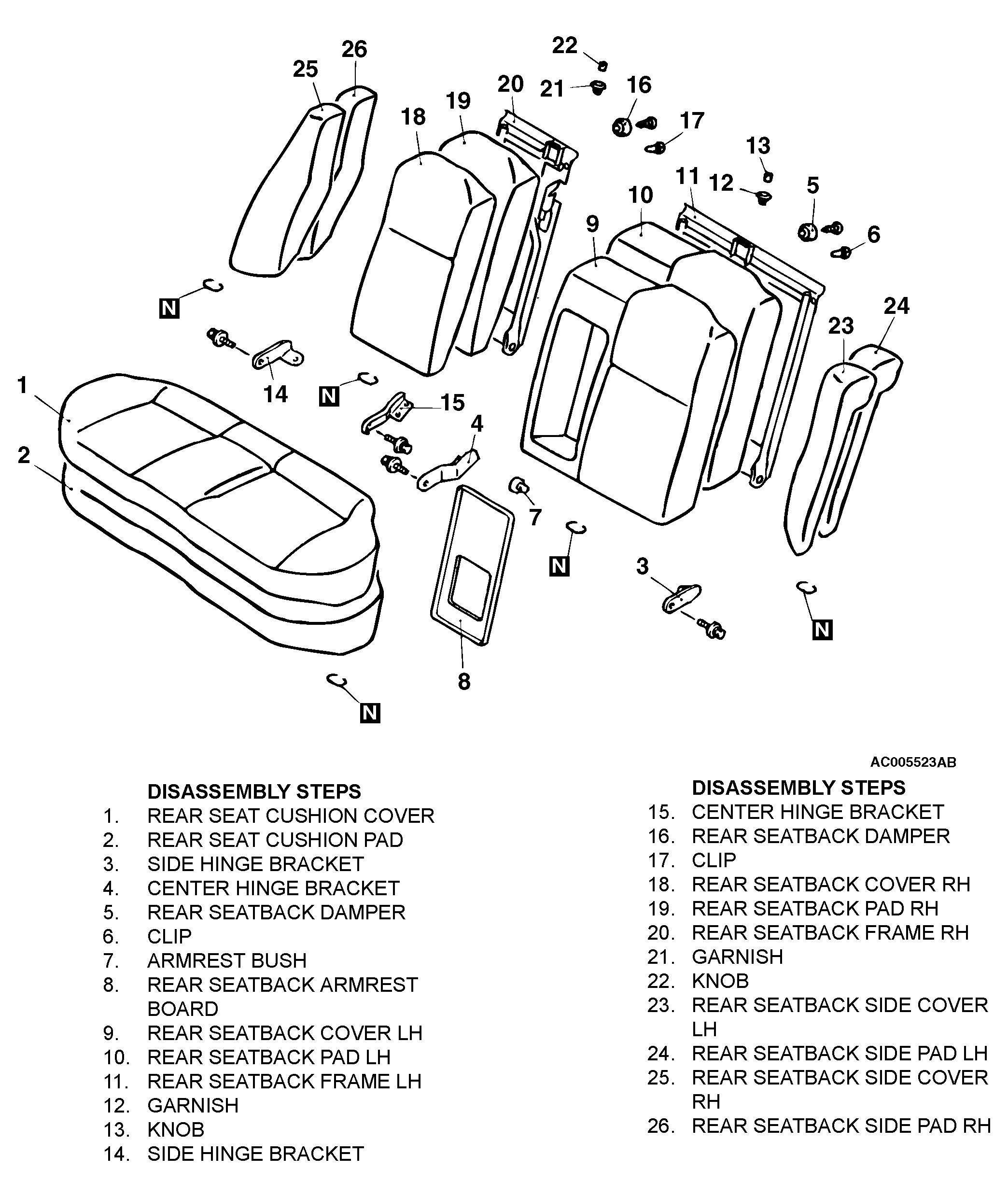

Fig 2: Disassembling View Of Rear Seat (Split Seat)
G04278125Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
