Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

< FRONT DOOR TRIM >

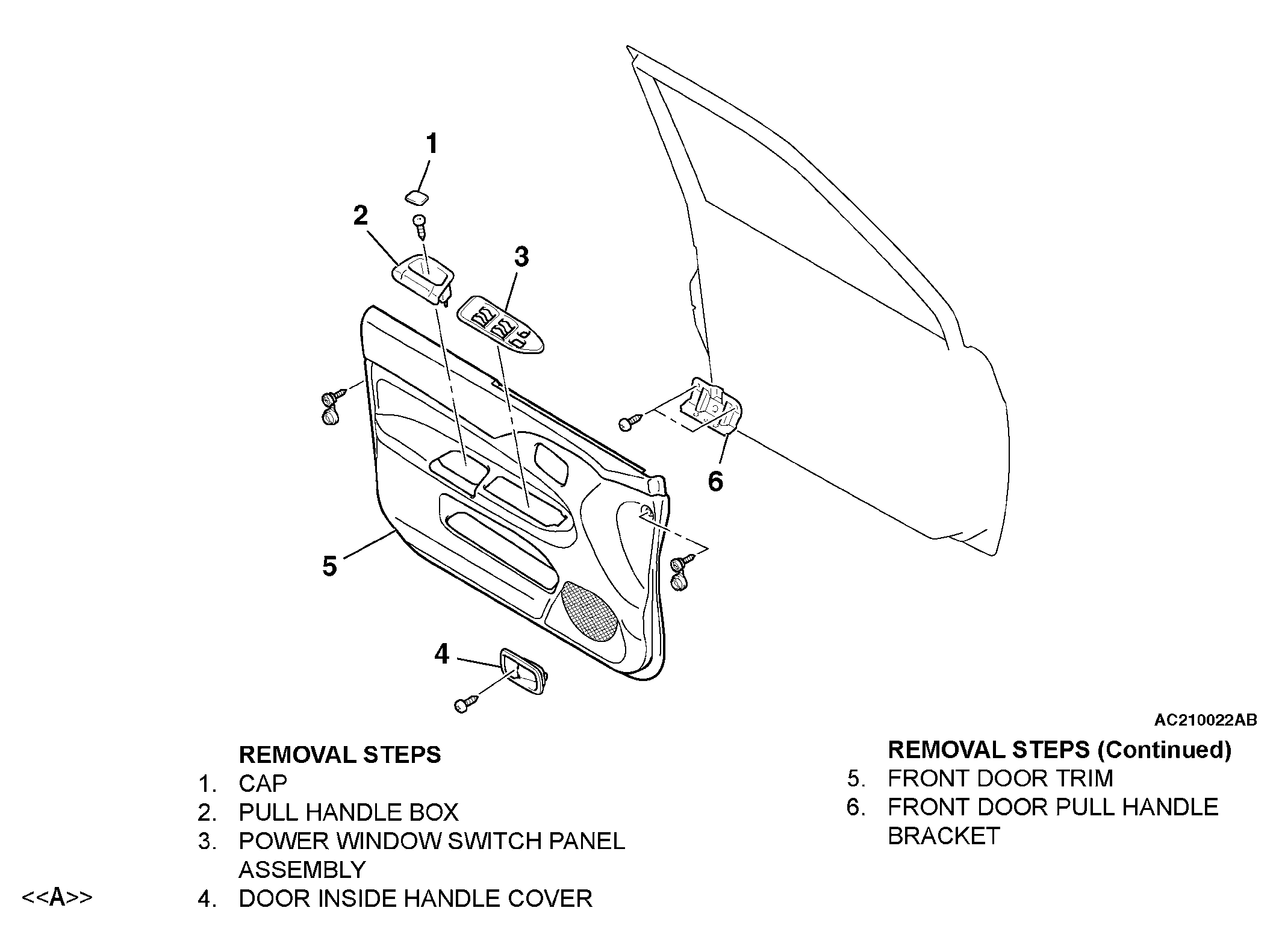

Fig 1: Removing View Of Front Door Trim
G04278106Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

< REAR DOOR TRIM >

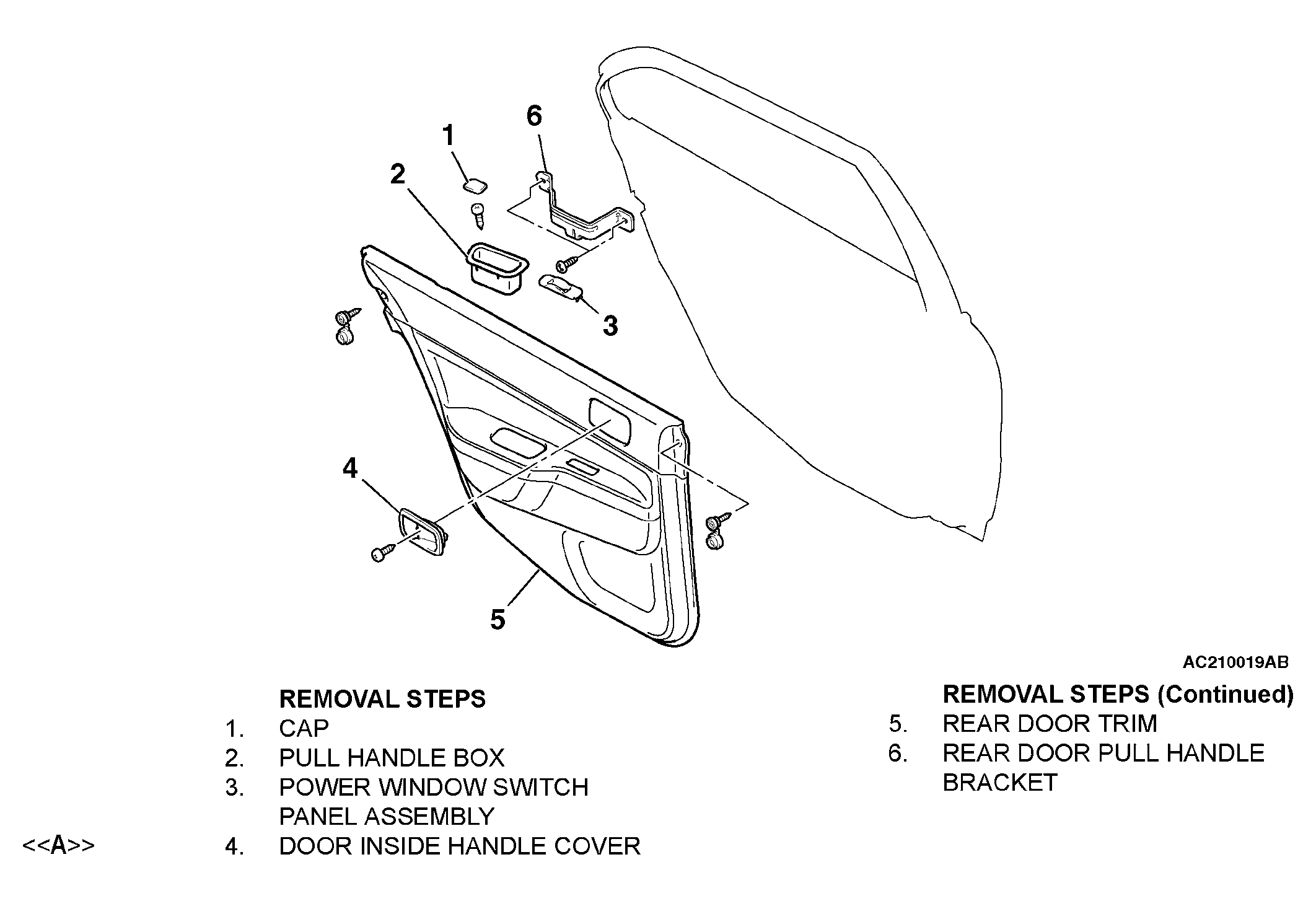

Fig 2: Removing View Of Rear Door Trim
G04278107Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
