Special Tools

WARNING: This page is about a different variant/trim than selected.

SPECIAL TOOLS

TOOL	TOOL NUMBER AND NAME	SUPERSESSION	APPLICATION

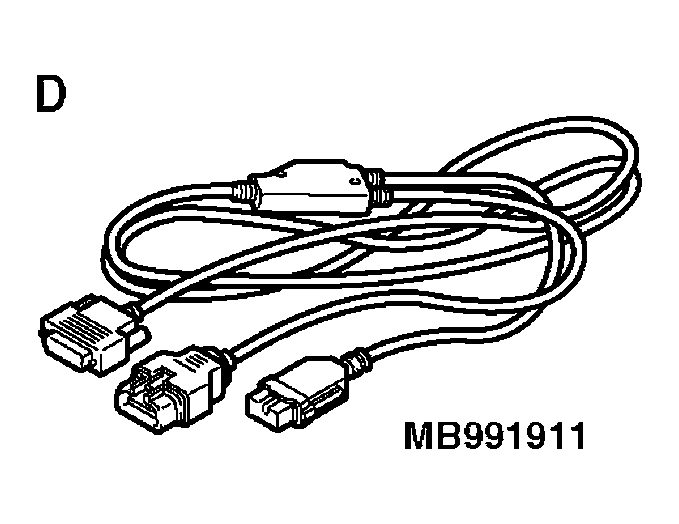

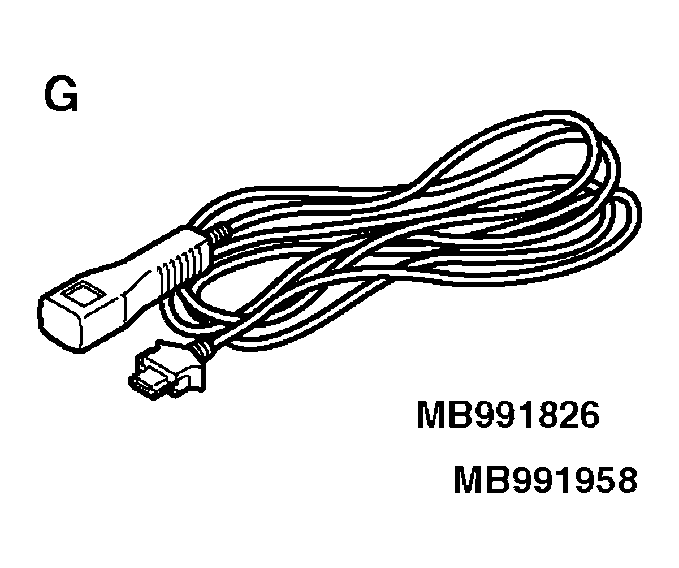

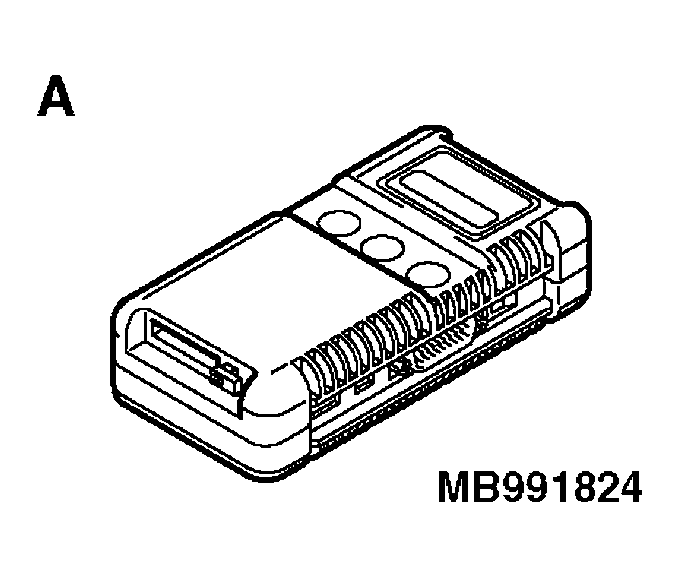

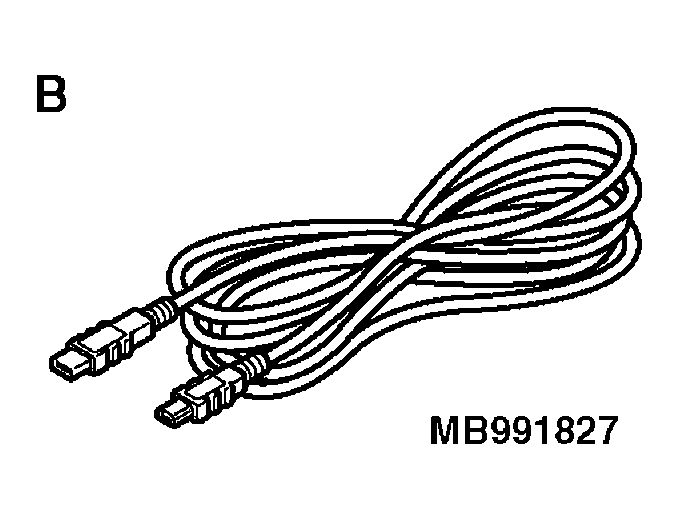

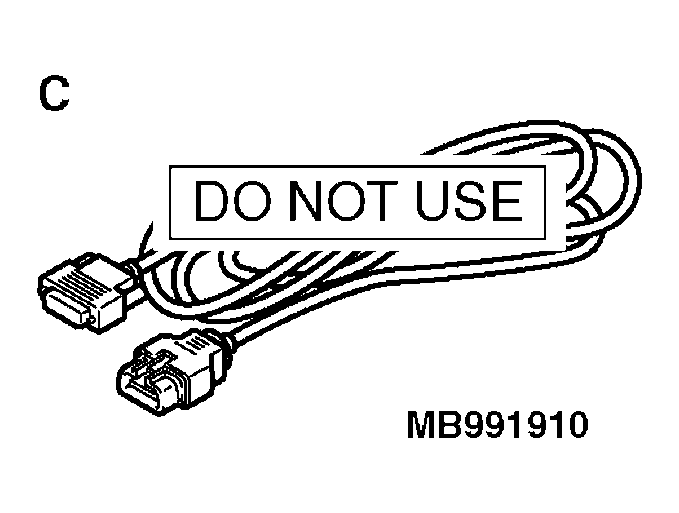

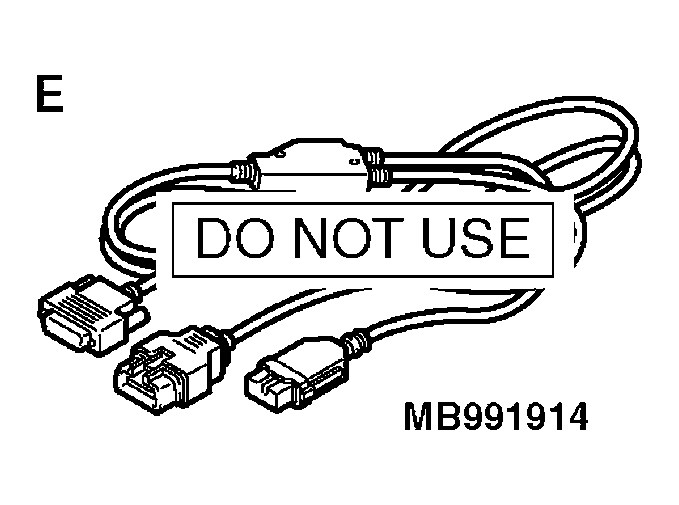

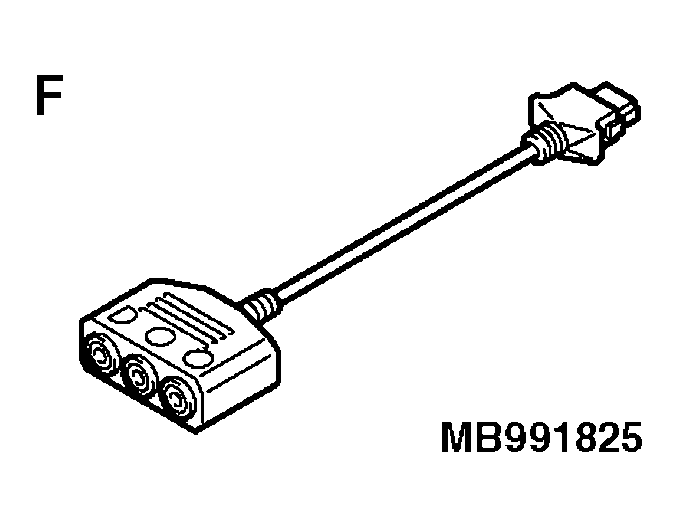

A B C D E F G	MB991958 MUT-III sub assembly MB991824 Vehicle communication interface (V.C.I.) MB991827 MUT-III USB cable MB991910 MUT-III main harness A (Vehicles with CAN communication system) MB991911 MUT-III main harness B (Vehicles without CAN communication system) MB991914 MUT-III main harness C (for Daimler Chrysler models only) MB991825 MUT-III measurement adapter MB991826 MUT-III trigger harness	MB991824-KIT NOTE: G: MB991826 MUT-III trigger harness is not necessary when pushing V.C.I. ENTER key.	Drive belt tension check Ignition timing check Curb idle speed check Idle mixture check CAUTION: If you connect MUT-III main harness A to a vehicle without CAN communication system to use the MUT-III, a pulse signal may interfere with the simulated vehicle speed lines, thus causing the MUT-III inoperative. Therefore, use the MUT-III main harness B (MB991911) instead.

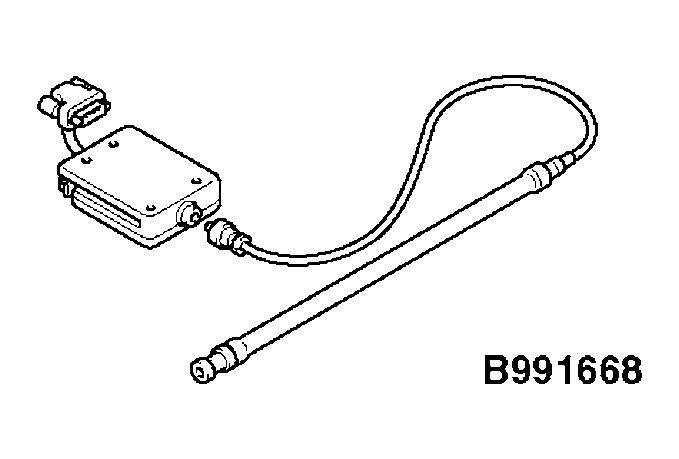

	MB991668 Belt tension meter set	Tool not available	Drive belt tension check [used together with scan tool (MUT-III sub assembly)]
TOOL	TOOL NUMBER AND NAME	SUPERSESSION	APPLICATION

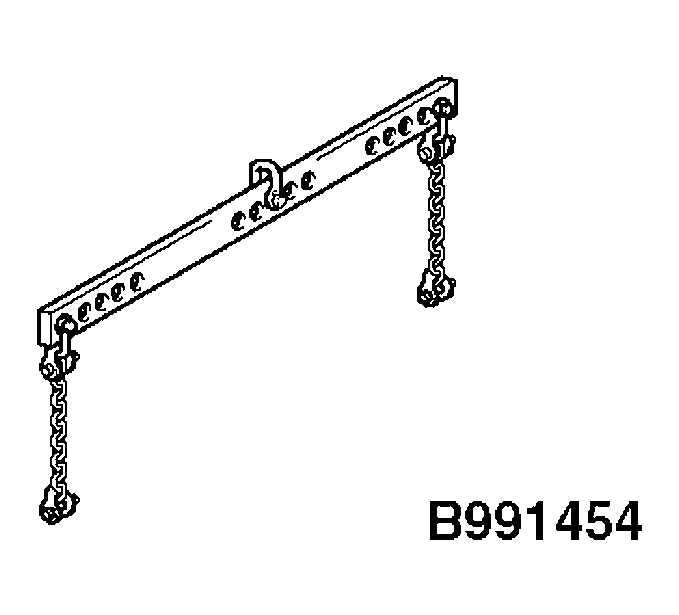

	MB991454 Engine hanger balancer	MZ203827-01	When the engine hanger is used: Supporting the engine assembly during removal and installation of the transaxle assembly NOTE: Special tool MB991454 is a part of engine hanger attachment set MB991453.

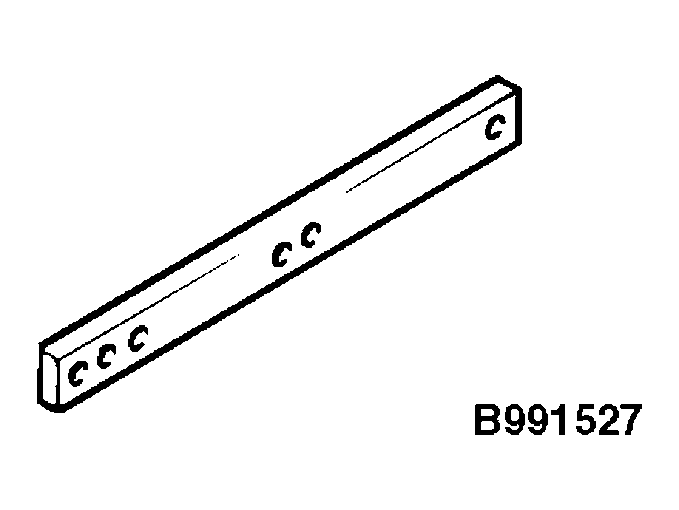

	MB991527 Hanger	Tool not available

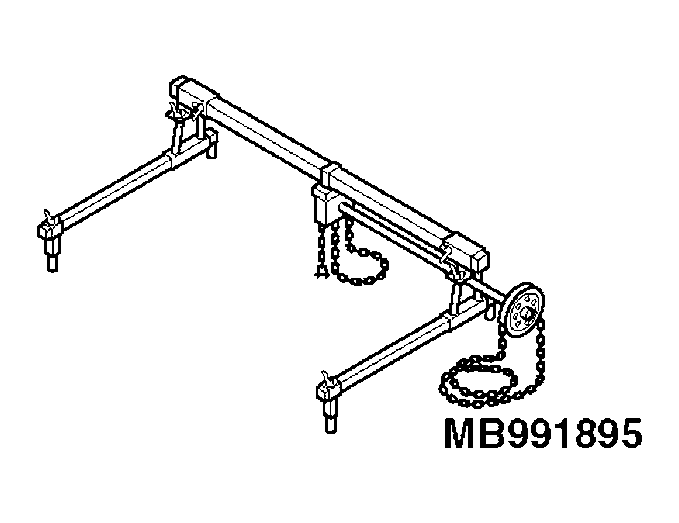

	MB991895 Engine hanger	Tool not available

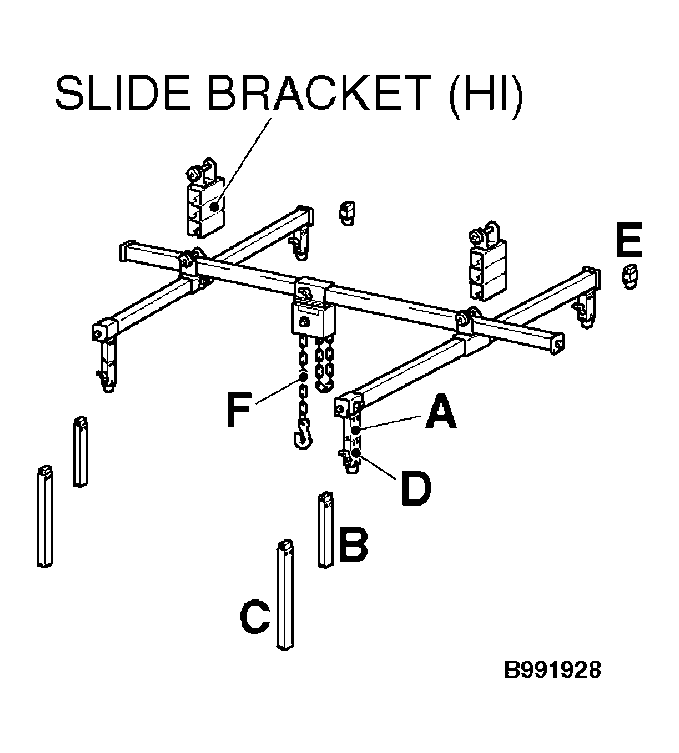

SLIDE BRACKET (HI)	MB991928 Engine hanger MB991929 Joint (50) x 2 MB991930 Joint (90) x 2 MB991931 Joint (140) x 2 MB991932 Foot (standard) x 4 MB991933 Foot (short) x 2 MB991934 Chain and hook assembly	Tool not available

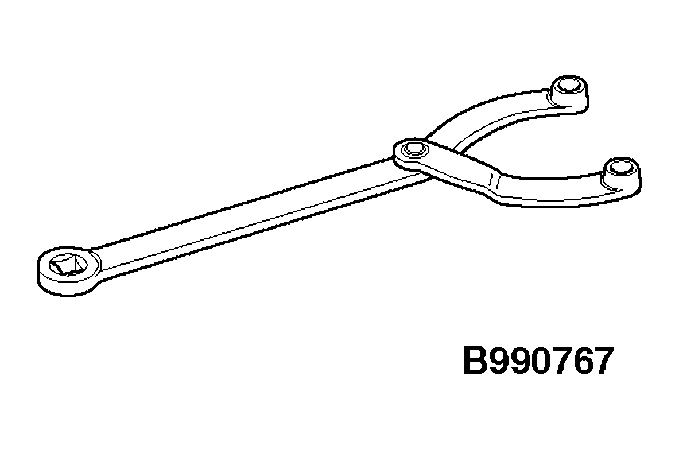

	MB990767 Front hub and flange yoke holder	MB990767-01	Holding the camshaft sprocket

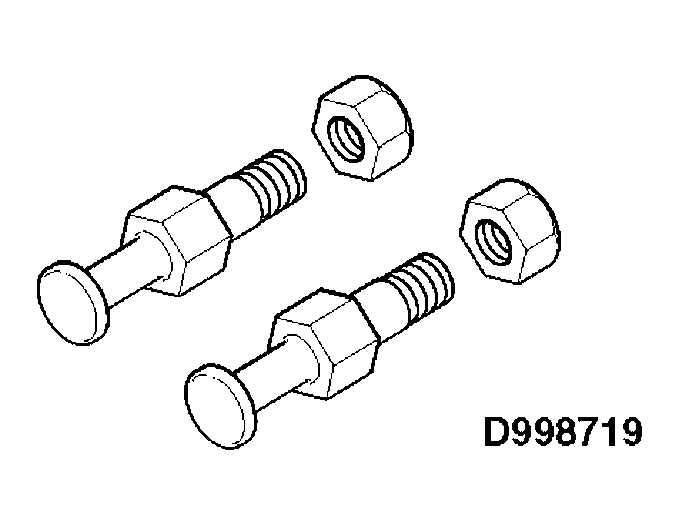

	MD998719 Pin	MIT308239	Holding the camshaft sprocket

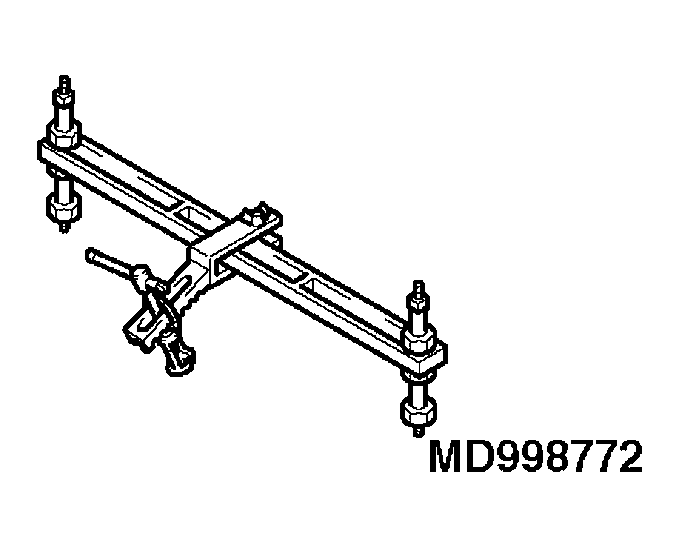

	MD998772 Valve spring compressor	General service tool	Compressing valve spring
TOOL	TOOL NUMBER AND NAME	SUPERSESSION	APPLICATION
	MB991999 Valve stem seal installer	-	Valve stem seal installation

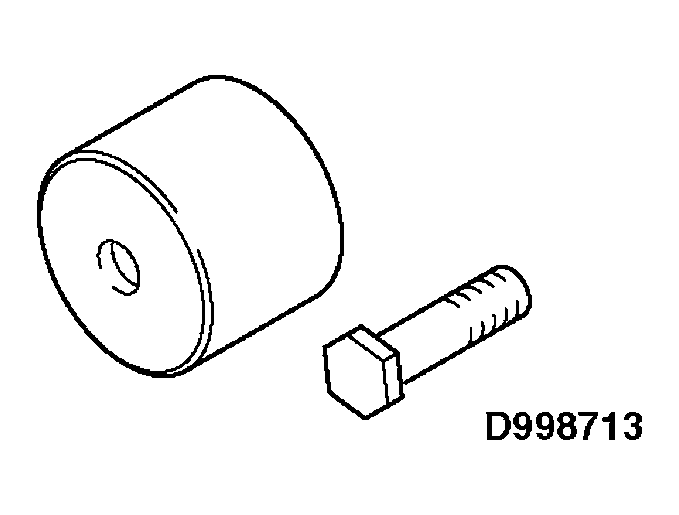

	MD998713 Camshaft oil seal installer	MD998713-01	Camshaft oil seal installation

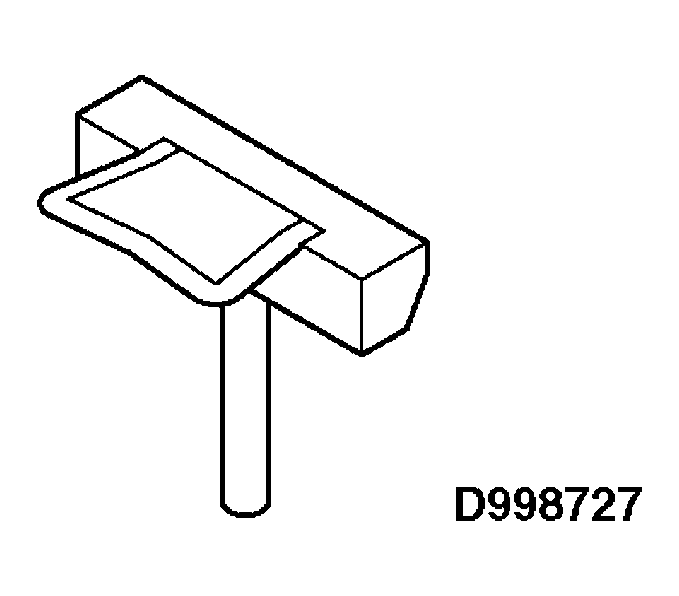

	MD998727 Oil pan FIPG cutter	MD998727-01	Oil pan removal

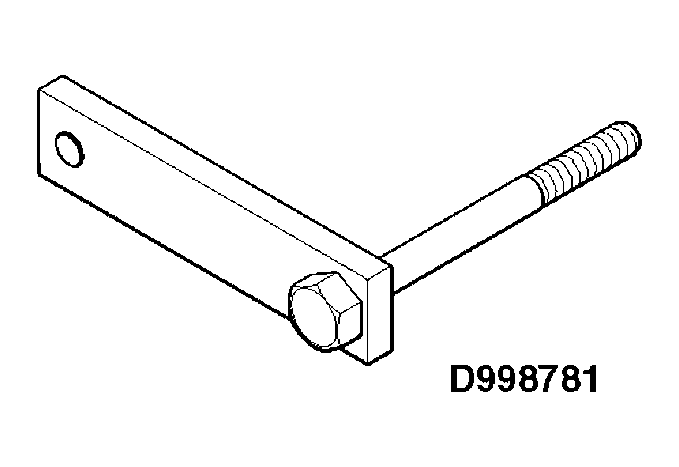

	MD998781 Flywheel stopper	General service tool	Supporting the flywheel assembly < M/T > Supporting the A/T drive plate < A/T >

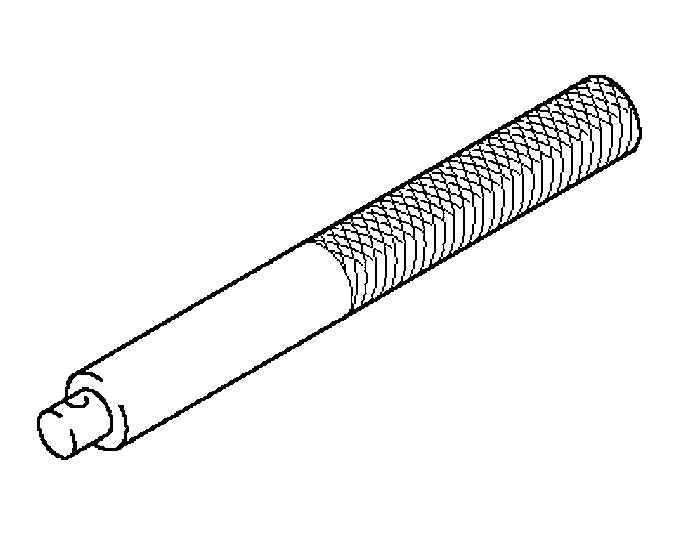

	MB990938 Installer bar	MB990938-01	Crankshaft rear oil seal installation

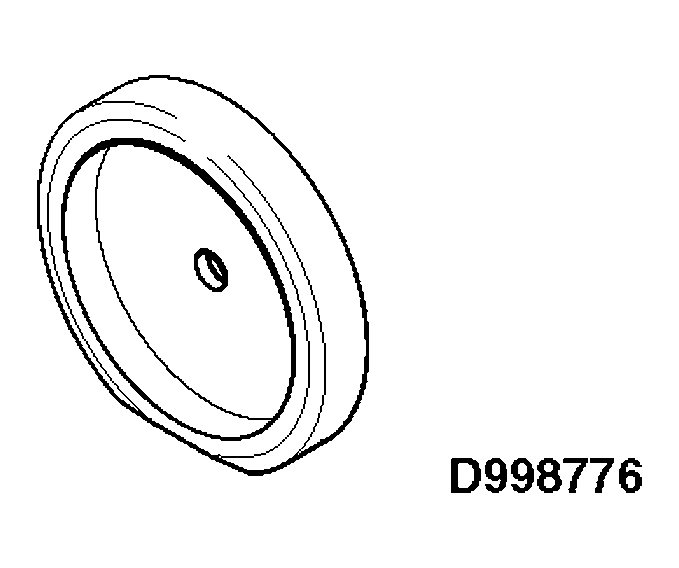

	MD998776 Crankshaft rear oil seal installer	MD998776-01	Crankshaft rear oil seal installation

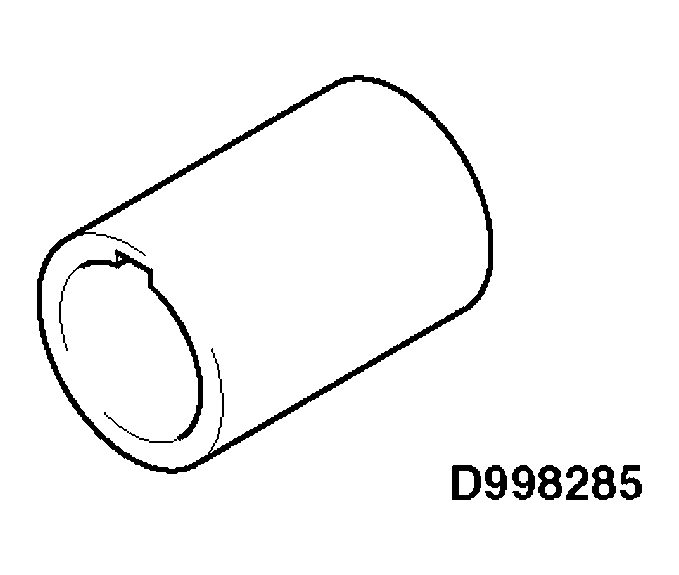

	MD998285 Crankshaft front oil seal guide	MD998285-01	Crankshaft front oil seal installation
	MD998375 Crankshaft front oil seal installer	MD998375-01	Crankshaft front oil seal installation
TOOL	TOOL NUMBER AND NAME	SUPERSESSION	APPLICATION

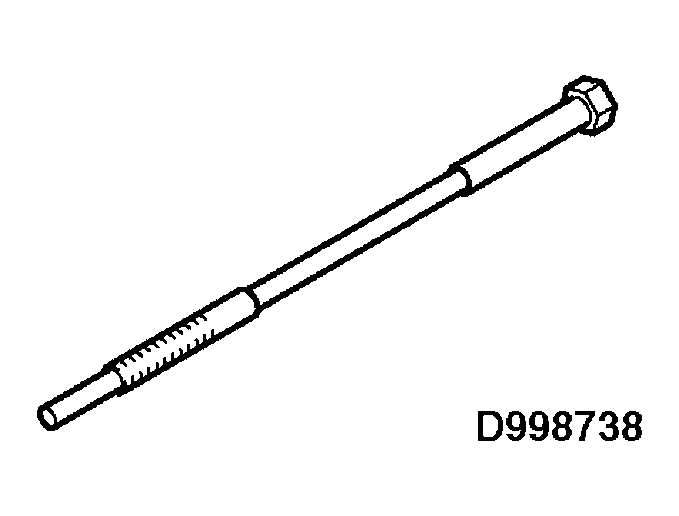

	MD998738 Adjusting bolt	MD998738-01	Supporting the timing belt tensioner arm and timing belt tensioner adjuster

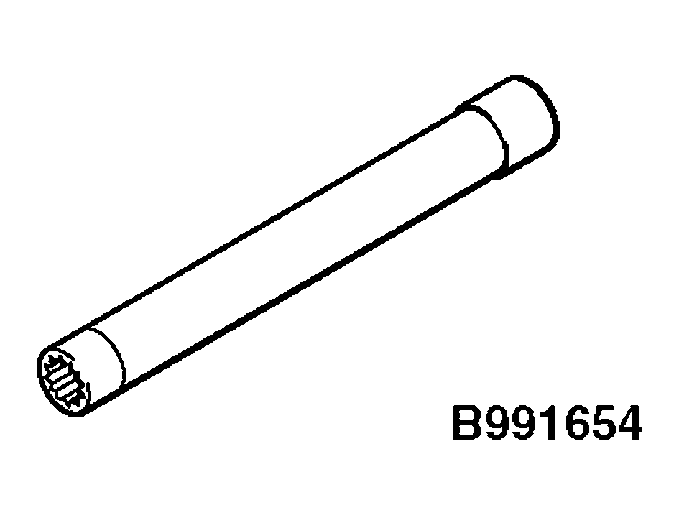

	MB991654 Cylinder head bolt wrench (12)	General service tool	Removal and installation of cylinder head bolt

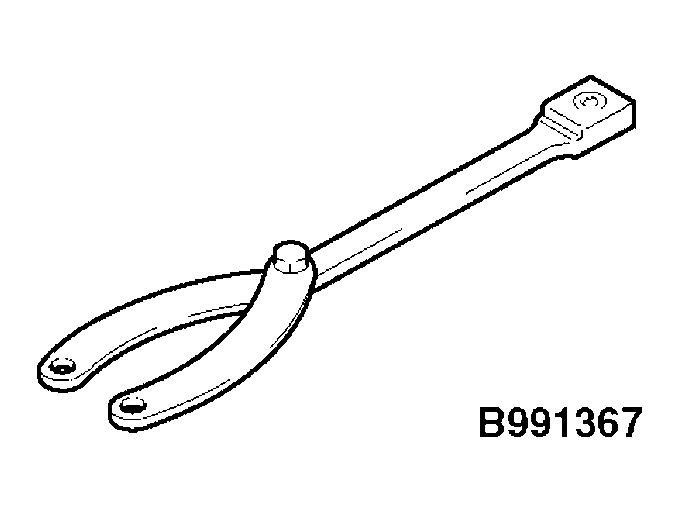

	MB991367 Special spanner	MB991367-01	Holding the crankshaft camshaft drive sprocket

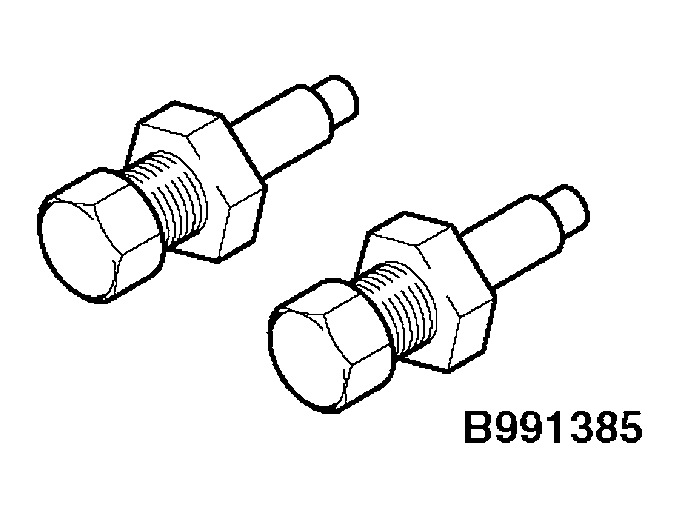

	MB991385 Pin	MIT217213	Holding the crankshaft camshaft drive sprocket

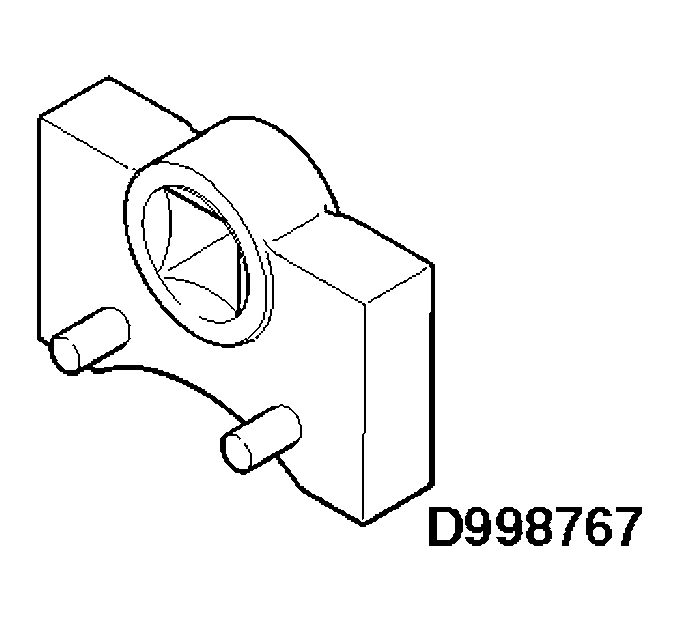

	MD998767 Tensioner wrench	MD998752-01	Valve timing belt tension adjustment
