General Circuit Diagram For The Power Windows
General Circuit Diagram For The Power Windows
WARNING:
This page is about a different variant/trim than selected.

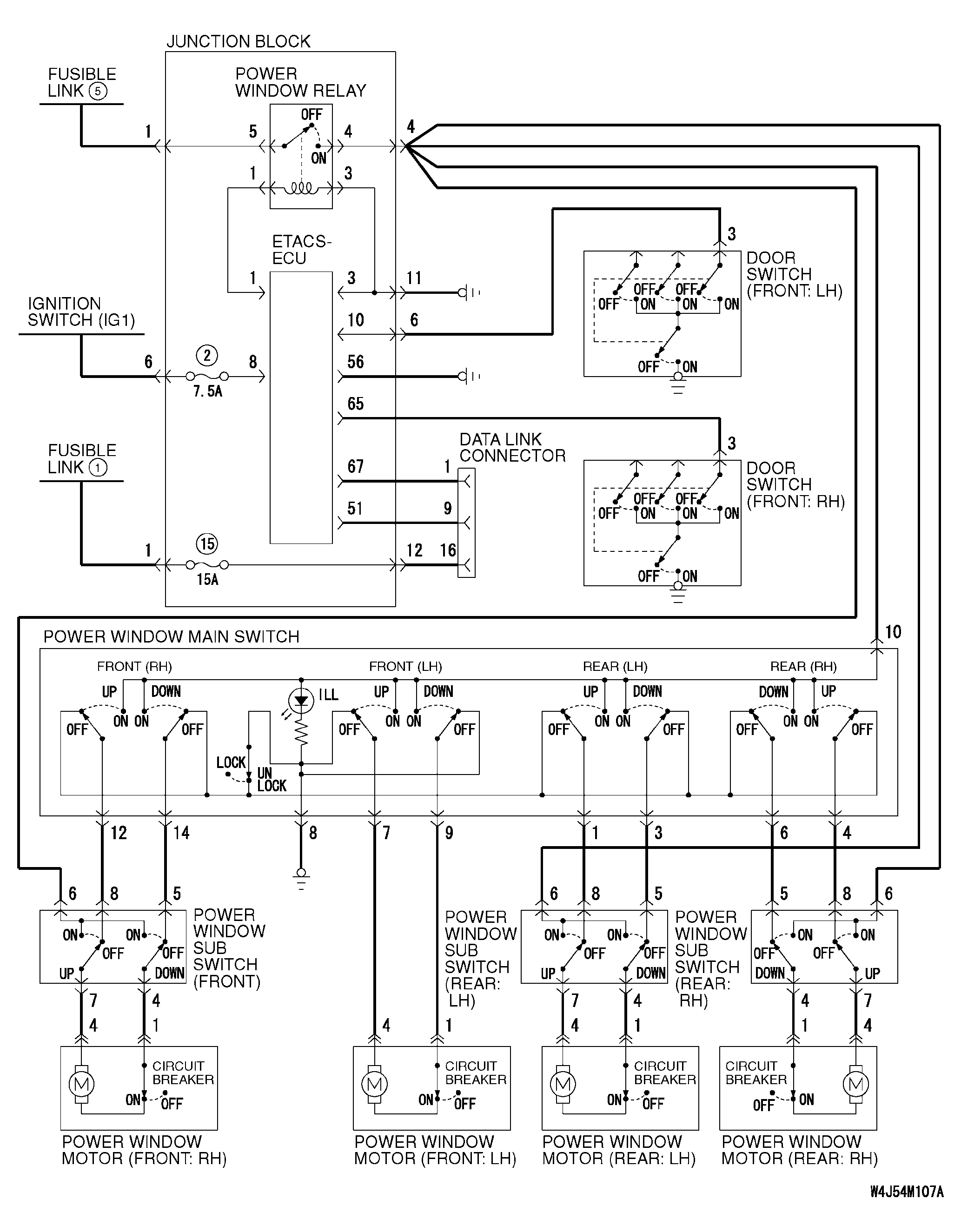

Fig 1: General Circuit Diagram For Power Windows
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
