>>A<< Upper Spring Seat Installation

WARNING: This page is about a different variant/trim than selected.

If the upper spring seat peeled off the pad, adhere the seat and the pad with a double-sided tape.

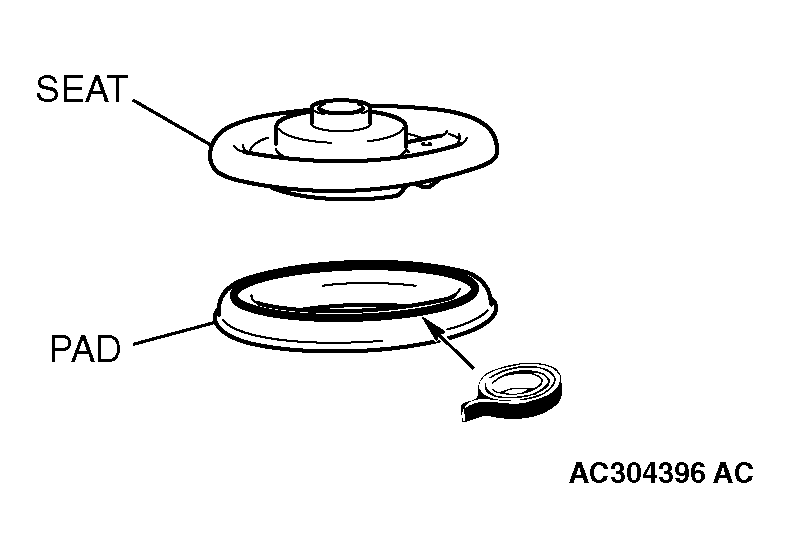

Fig 1: Installing Seat
G04277512Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
