Front Impact Sensor

WARNING: This page is about a different variant/trim than selected.
  1. Check the radiator support panel for distortion and rust.
  2. Check the front impact sensor for dents, cracks, deformation or rust.
  3. Check the front impact sensor wiring harness for binding, check the connector for damage, and check the terminals for deformation.

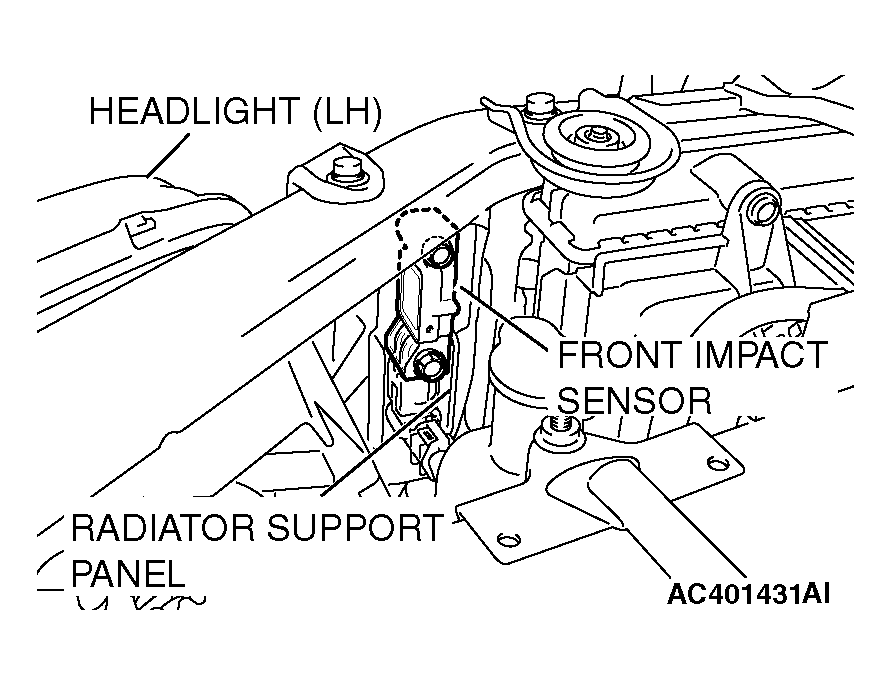

Fig 1: Checking Front Impact Sensor
G04278671Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
