< Air Bag Module (Driver's Side) And Clock Spring >

WARNING: This page is about a different variant/trim than selected.

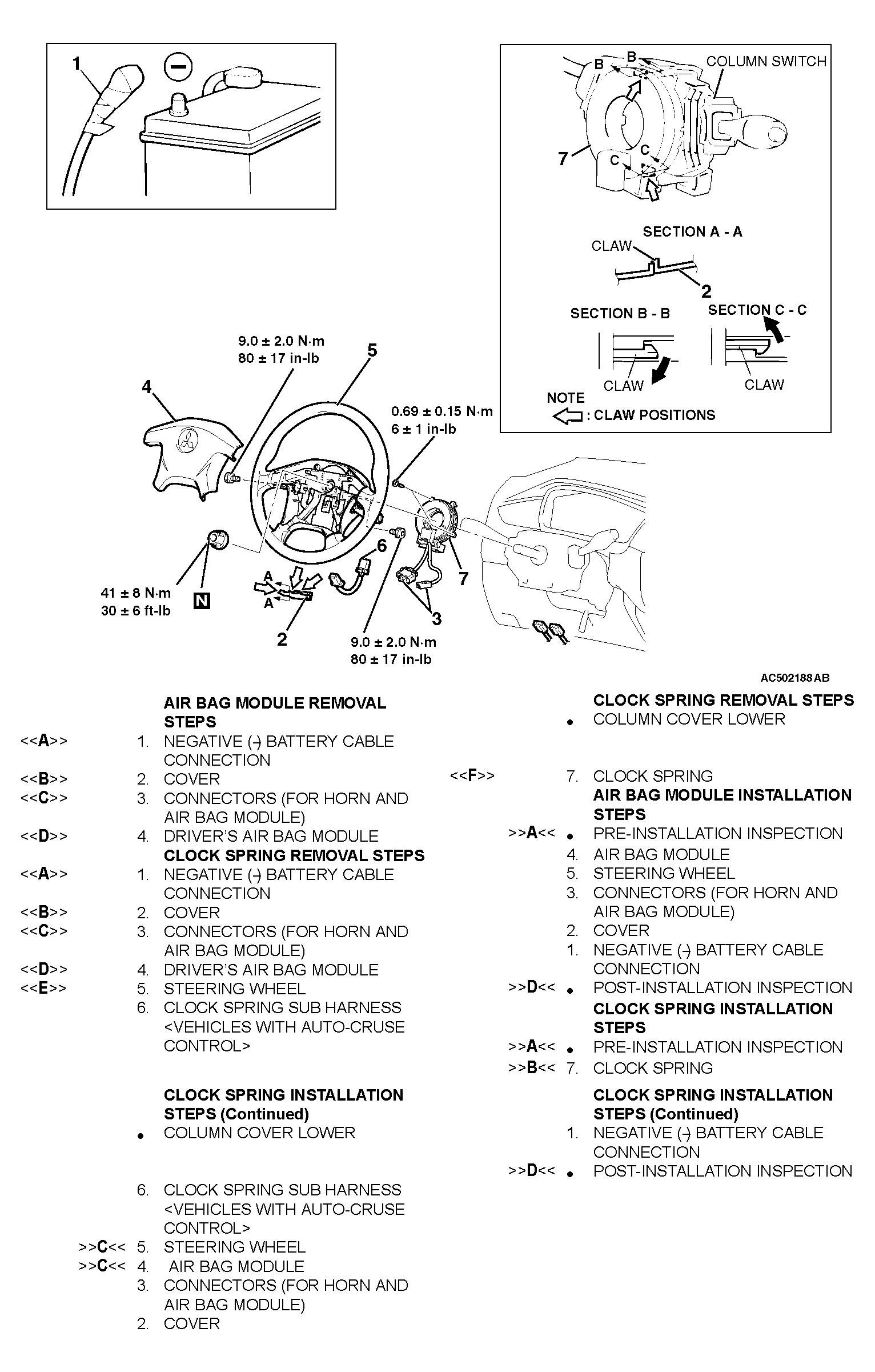

Fig 1: Removing And Installing Air Bag Module (Driver's Side) And Clock Spring
G04278706Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
